1827 mm (72 in)

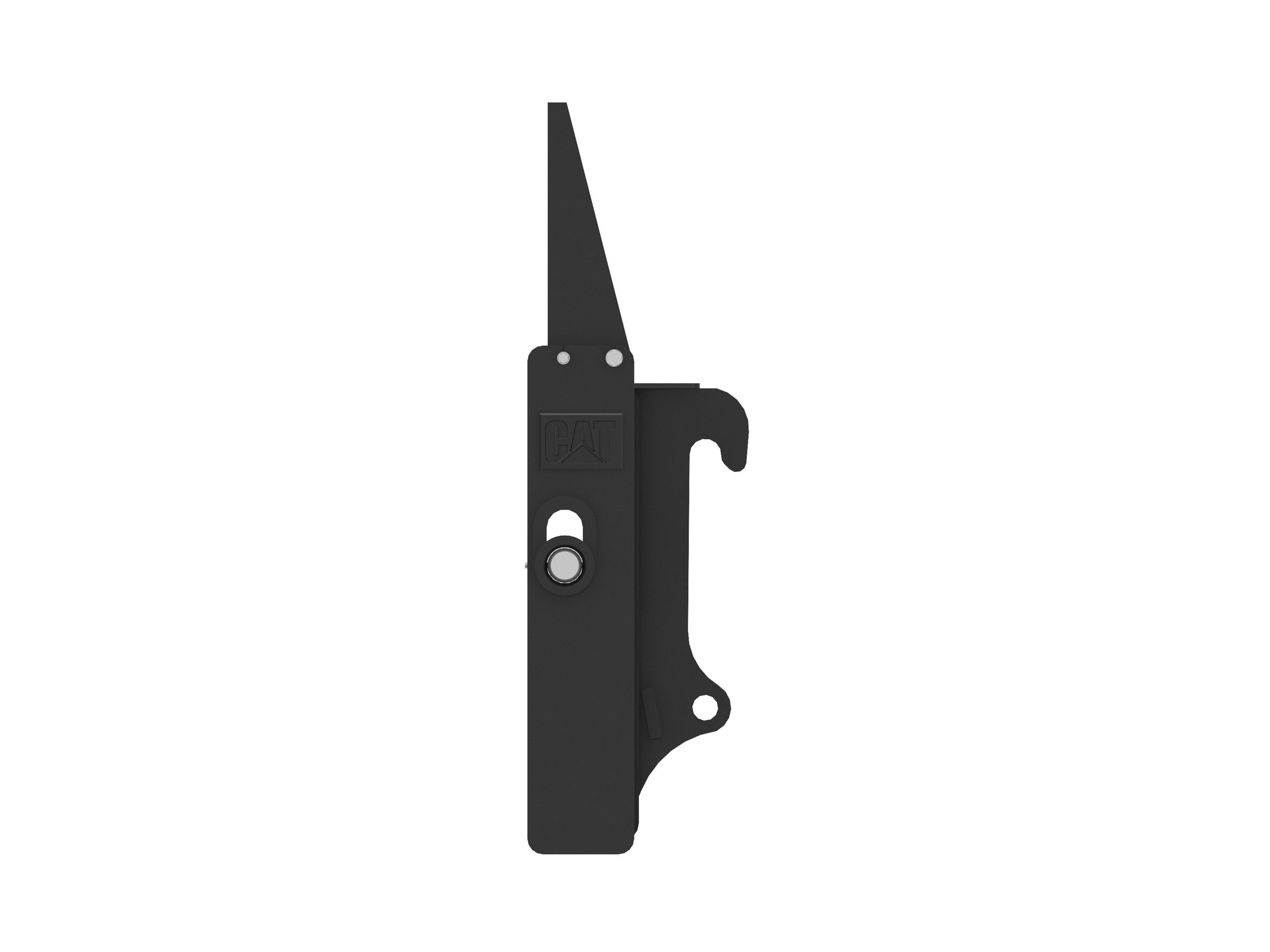

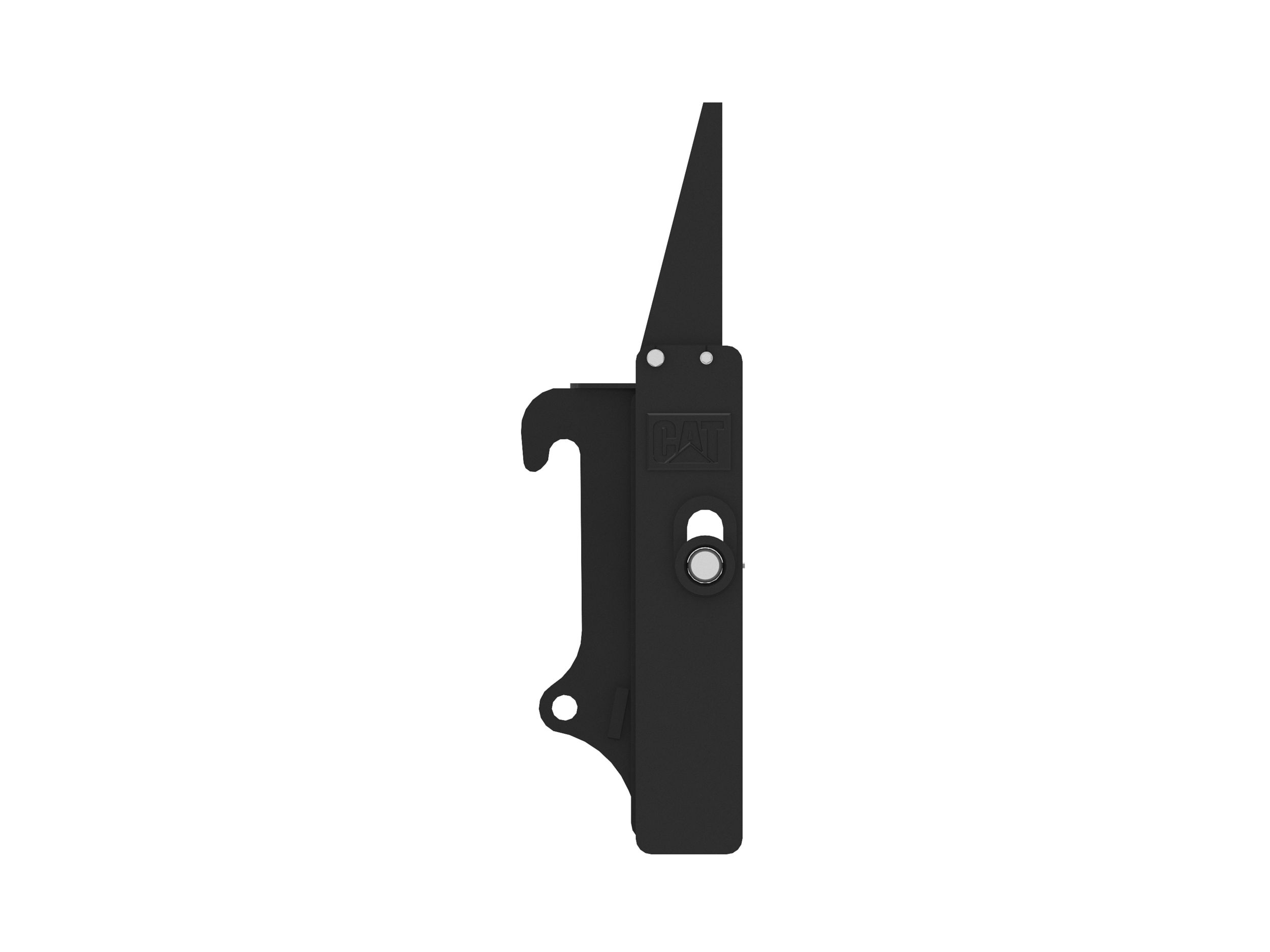

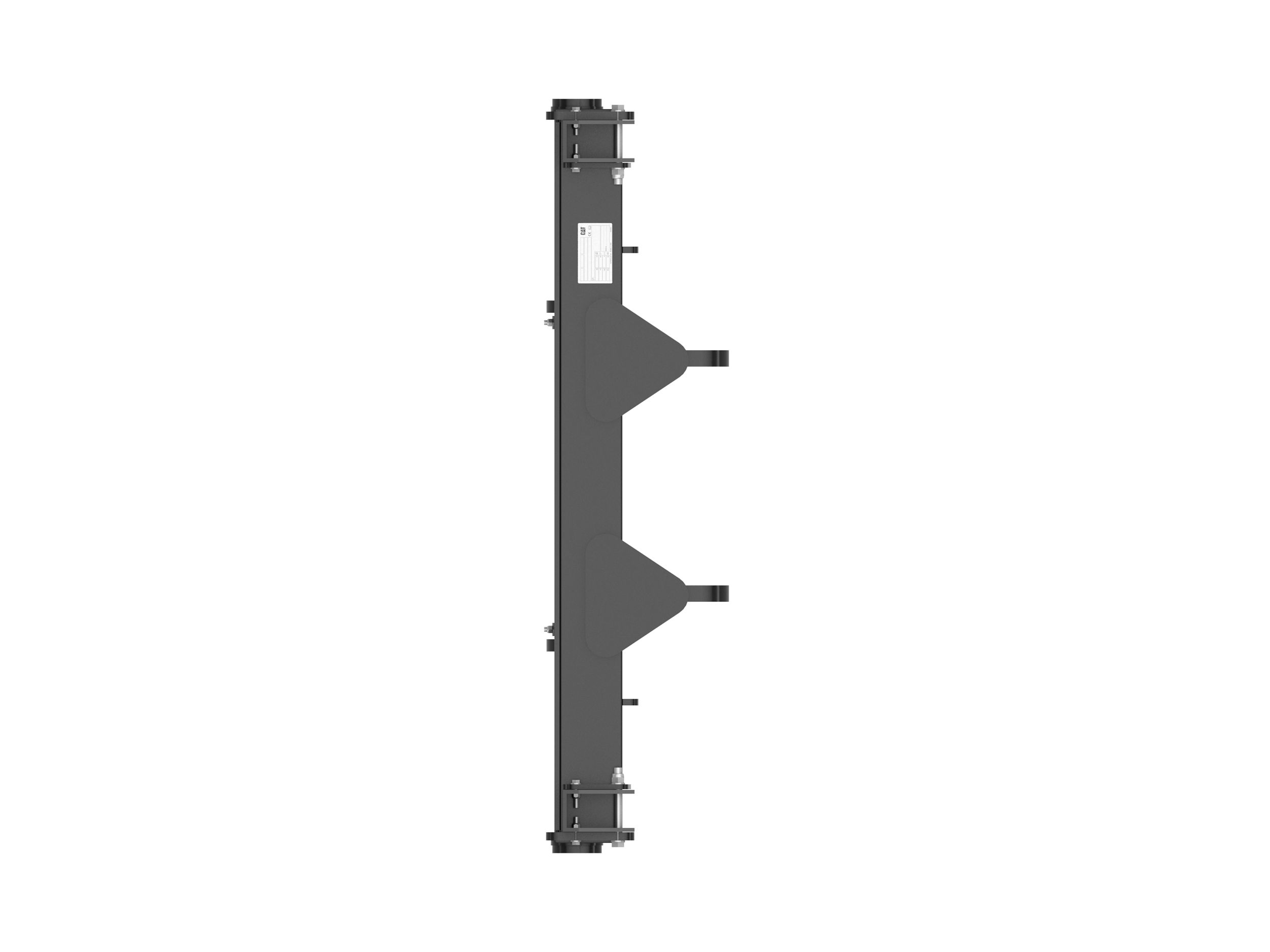

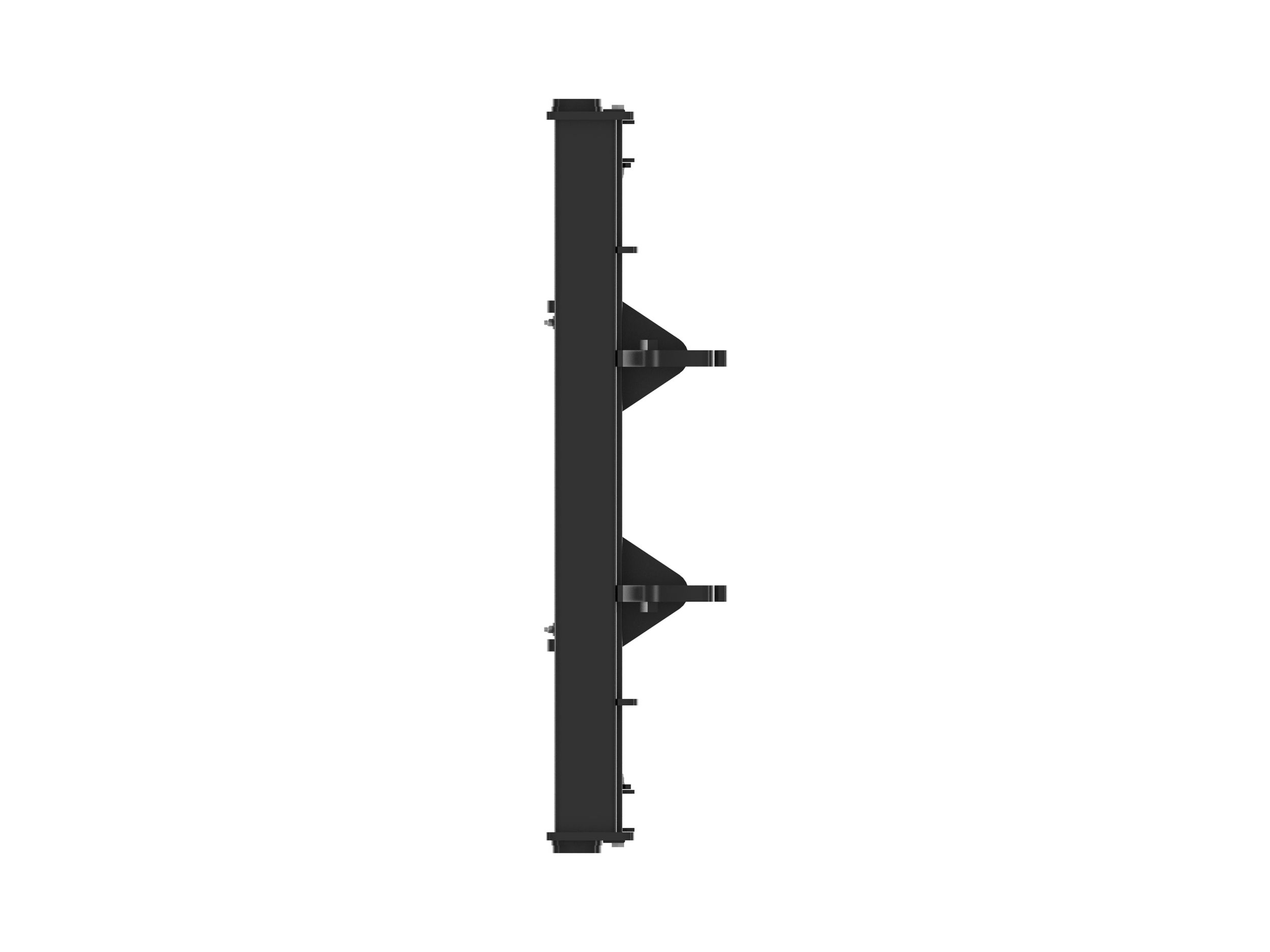

Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
Interface Type
IT Coupler
Tine Configuration
Non-swinging, Floating
Height
59.2 in
Specification
Value
Interface Type
IT Coupler
Tine Configuration
Non-swinging, Floating
Height
59.2 in
Weight
978.9 lb
Width
71.9 in
Length
17.5 in
Tine Spacing Range - Outside Width
1150-1725 mm (45-68 in)
Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
Risers and Log guards prevent logs from rolling back on to linkages. Maximizes the ability to fill the fork at every pass by supporting large loads.
Wider carriages increase stability when handling longer poles/loads.
Wider tine widths provide a larger surface area for stability when transporting larger materials.
Easily interchange floating and non floating tine configurations by adding/removing a single bolt.
