2812 mm (111 in)

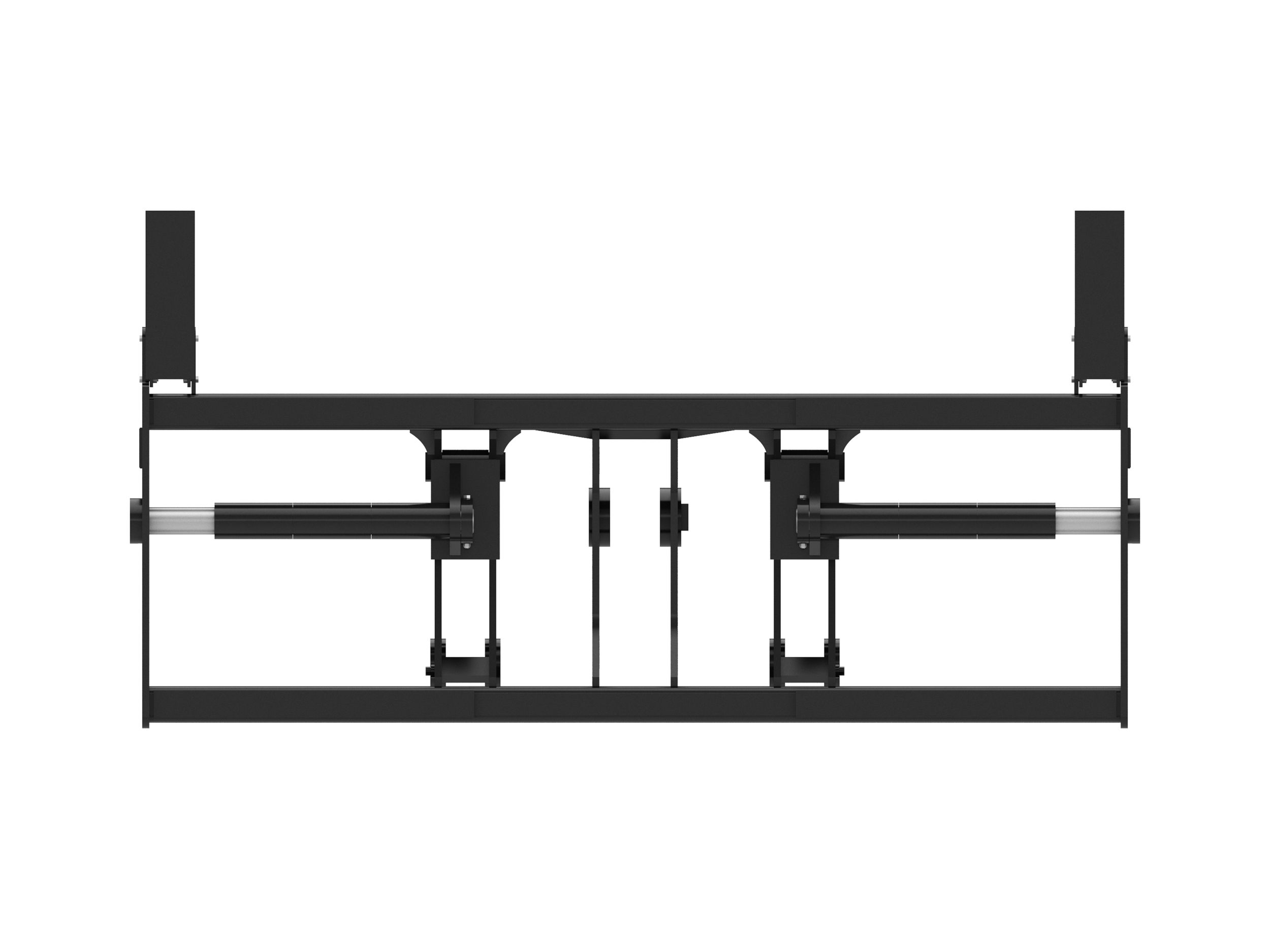

Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
Interface Type
Pin On
Tine Configuration
Non-swinging, Non-floating
Height
56.8 in
Specification
Value
Interface Type
Pin On
Tine Configuration
Non-swinging, Non-floating
Height
56.8 in
Weight
1761.5 lb
Width
110.7 in
Length
23.3 in
Tine Spacing Range - Outside Width
1391-2703 mm (55-107 in)
Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
Risers and Log guards prevent logs from rolling back on to linkages. Maximizes the ability to fill the fork at every pass by supporting large loads.
Wider carriages increase stability when handling longer poles/loads.
Wider tine widths provide a larger surface area for stability when transporting larger materials.
