TRS6

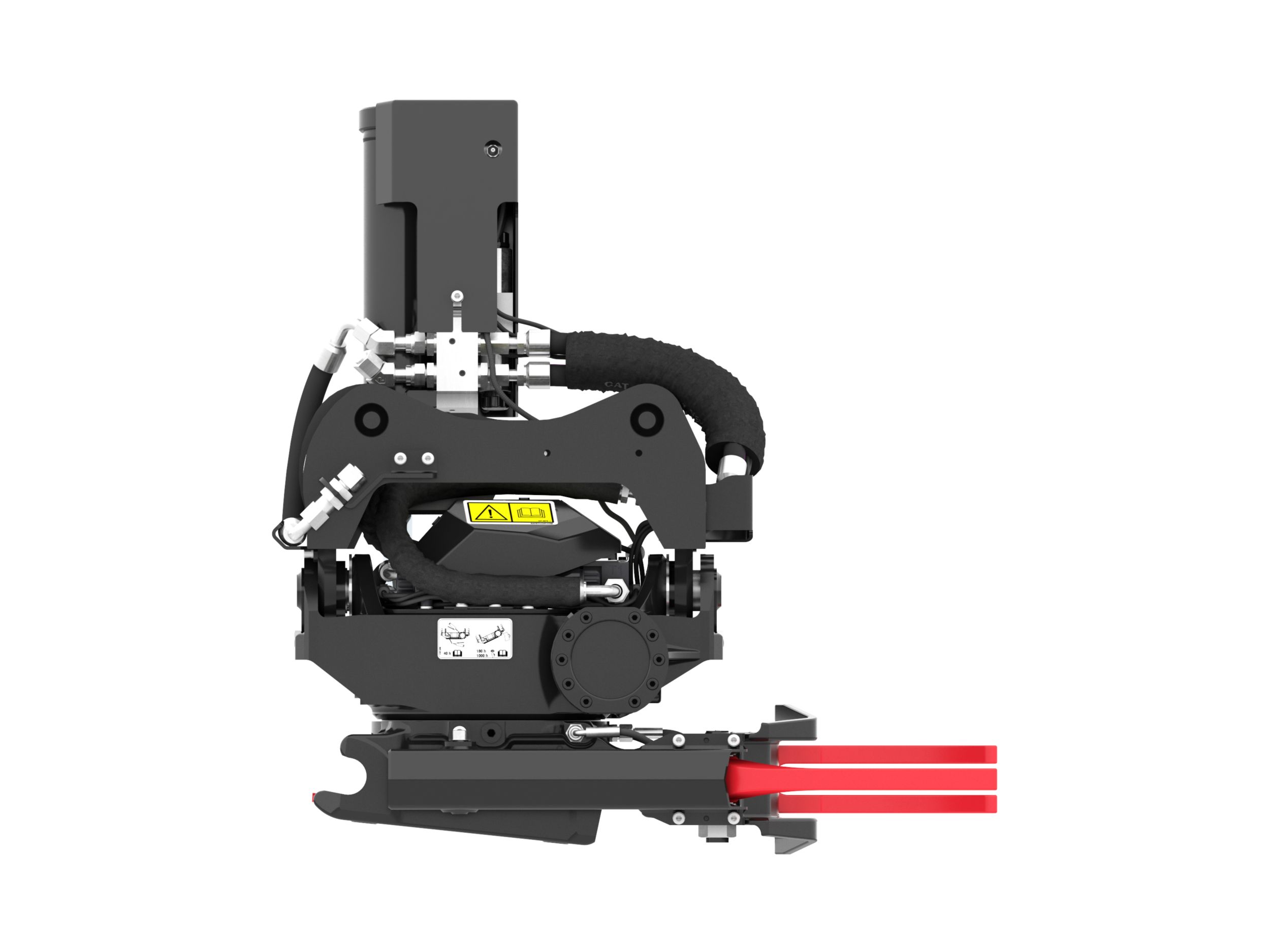

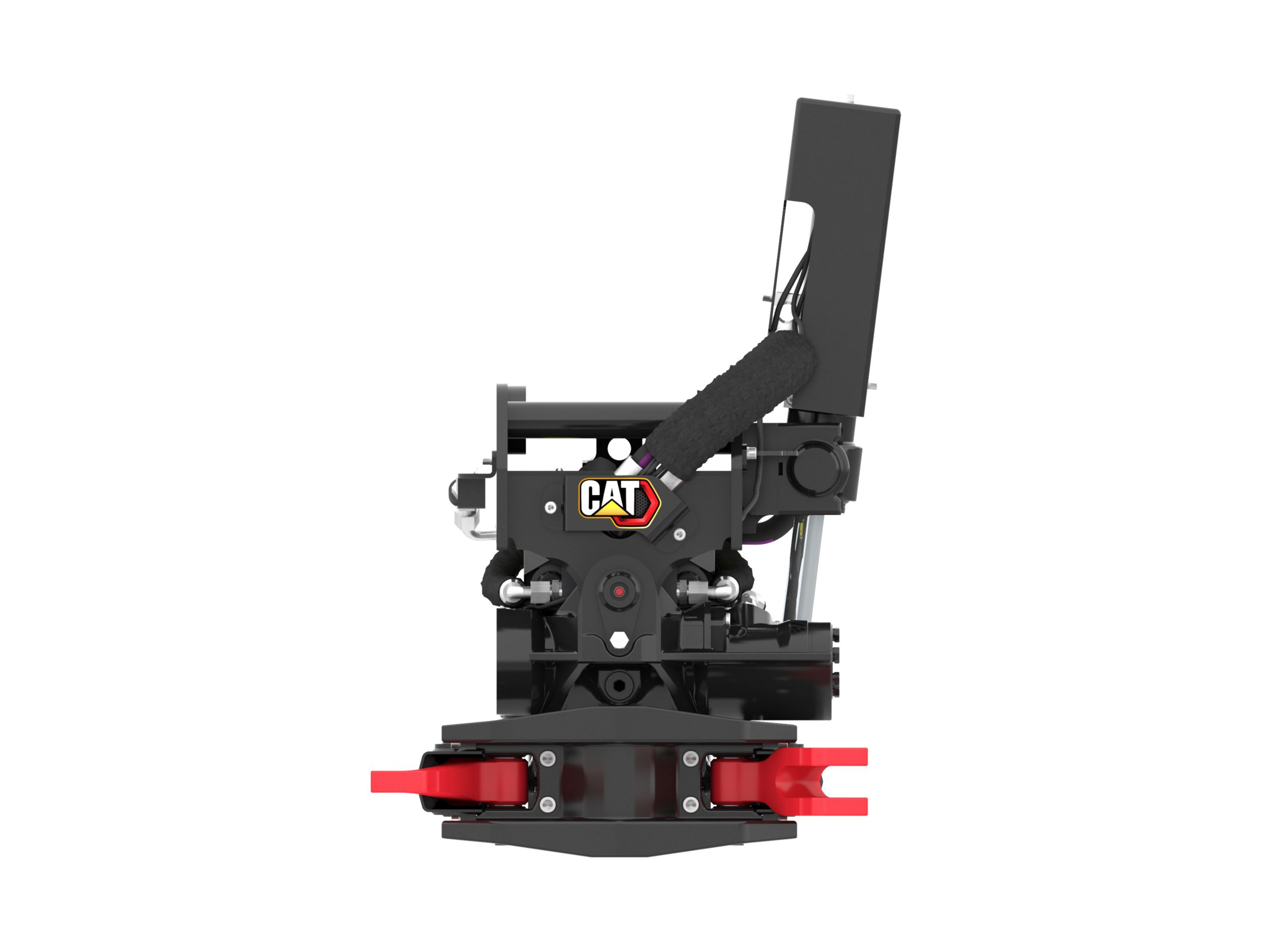

Cat® Tiltrotators for excavators provide 360-degree rotation and 40-degree tilting action side-to-side, allowing the machine to reach more work areas from a single position. The tiltrotator enables the operator to maneuver around posts, rocks, and other obstacles, as well as to reach along ditch edges more easily.
Machine Class
6 Ton Mini Excavators
Weight
540.1 lb
Interface Options: Top-Bottom
S-40 / S-40
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Machine Class
6 Ton Mini Excavators
Weight
540.1 lb
Interface Options: Top-Bottom
S-40 / S-40
Overall Height
32.2 in
Length
24 in
Overall Width
22.6 in
Rotation Speed
7 Seconds per 1 Full Rotation
Tilt Angle Range +/-
40 degrees left/right
Maximum Bucket Capacity
8.8 ft³
Maximum Bucket Width
47.2 in
Optimal Hydraulic Flow
45-80 L/min (12-21 gpm)
Maximum Operating Pressure
3626 psi
Required Hydraulics
1st Auxiliary
Tilting Torque
10627 lb/ft
Turning Torque
2876.5 lb/ft
Grapple Gripping Force, Opened to Maximum
1596.1 ft·lbf
Grapple Maximum Lifting Capacity
661.4 lb
Grapple Maximum Opening
16.3 in
Grapple Length
9.2 in
Provides optimal control of your work tools to provide greater flexibility.
A single point of entry for grease allows the entire unit to be greased quickly and easily.
Upgraded software informs the operator of the attachments position via standard equipped monitoring sensors.
A maintenance free solution that more effectively distributes heat, providing better lubrication than grease.
Worm gear box with high rotation torque and self locking ability allows digging in all directions with full power, allowing the gear to accept the maximum machine forces and split the load through the entire TRS construction.
Valves sustain holding pressures and prevent cylinder movement under load constraints.
The visual verification indicator allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
Used to pick up objects such as pipe and debris.
LCS incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation MHE machine Electronic Control Module (ECM) by way of an electrical harness. This data is then displayed on the operators display screen, and will provide audible indications when that locking status changes.
Only compatible with the following Next Gen machines and serial numbers:
  • 306 CR - S/N 6G6 1 & Up
