Jallad | A23

A23

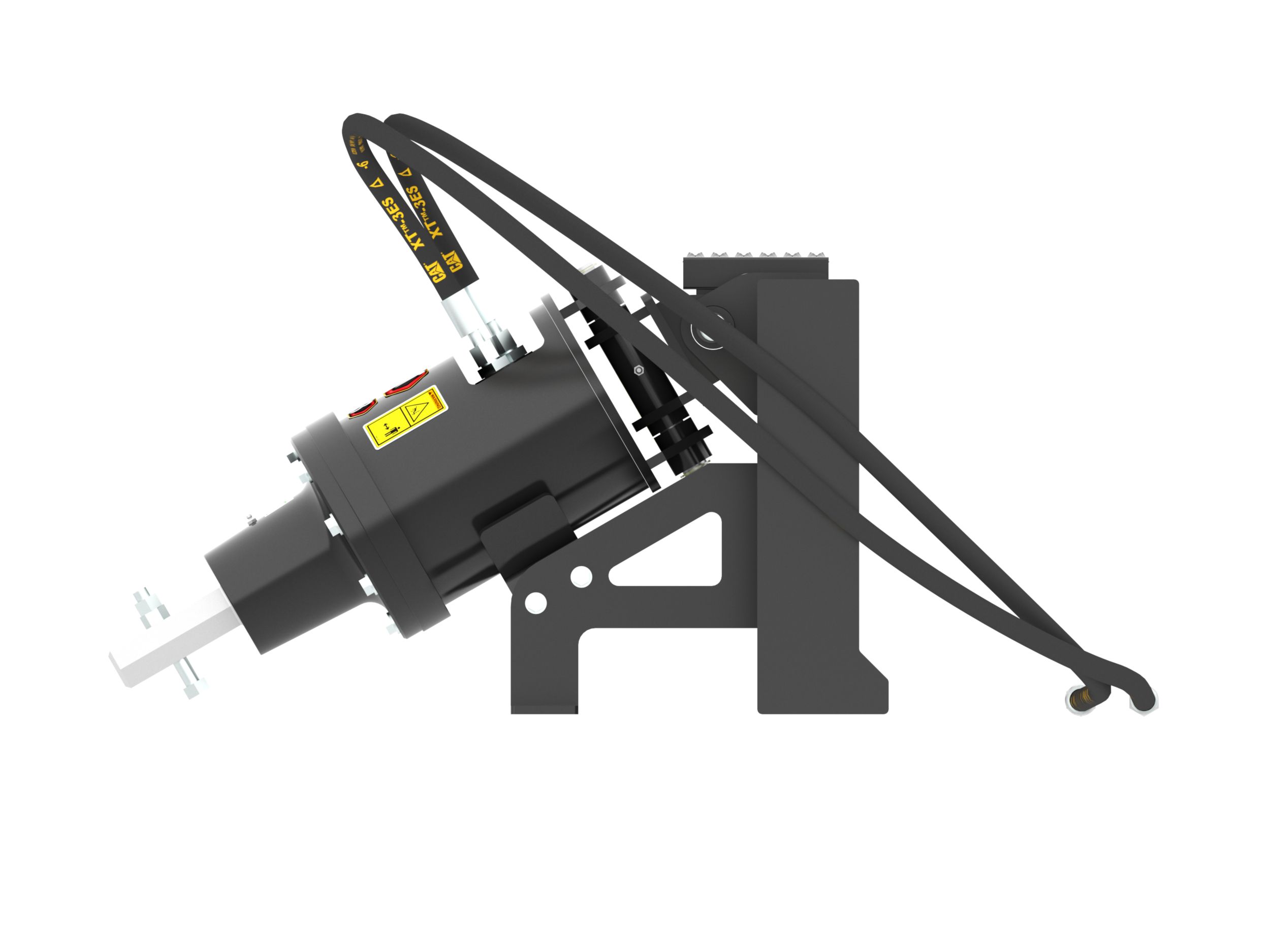

Cat® Augers are used for drilling holes for footings, fencing, signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.

Drive Shaft Torque at Maximum Pressure

1699.3 lb/ft

Drive Method

Gerotor Motor - Direct Drive

Mounting Bracket Design

Skid Steer Loader Coupler

DOWNLOAD TECHNICAL SPECIFICATIONS

REQUEST A QUOTE

COMPARE MODELS

Specifications

BENEFITS & FEATURES

MEDIA GALLERY

RELATED ATTACHMENTS

Specification

Value

Drive Shaft Torque at Maximum Pressure

1699.3 lb/ft

Drive Method

Gerotor Motor - Direct Drive

Mounting Bracket Design

Skid Steer Loader Coupler

Required Hydraulics

Standard Flow

Optimal Hydraulic Flow

42-83 L/min (11-22 gpm)

Optimal Hydraulic Pressure

145-235 bar (2100-3400 psi)

Overall Width - With Bracket

45 in

Overall Length - With Bracket

23.5 in

Overall Height

40.2 in

Housing Diameter

9.9 in

Swing Range

102 degrees

Swing Range (fore/aft)

120 degrees

Swing Range (L/R)

102 degrees

Weight

423.3 lb

Motor Displacement

38 in³

Bit Speed at Maximum Flow

127 rpm

Hex Output Shaft Size

2 in

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.

Exclusive Cat® mounting bracket for superior structural reinforcement, positioning flexibility, easy transportation, and near vertical storage. Also includes serrated step to allow safer and easier access into the cab.
