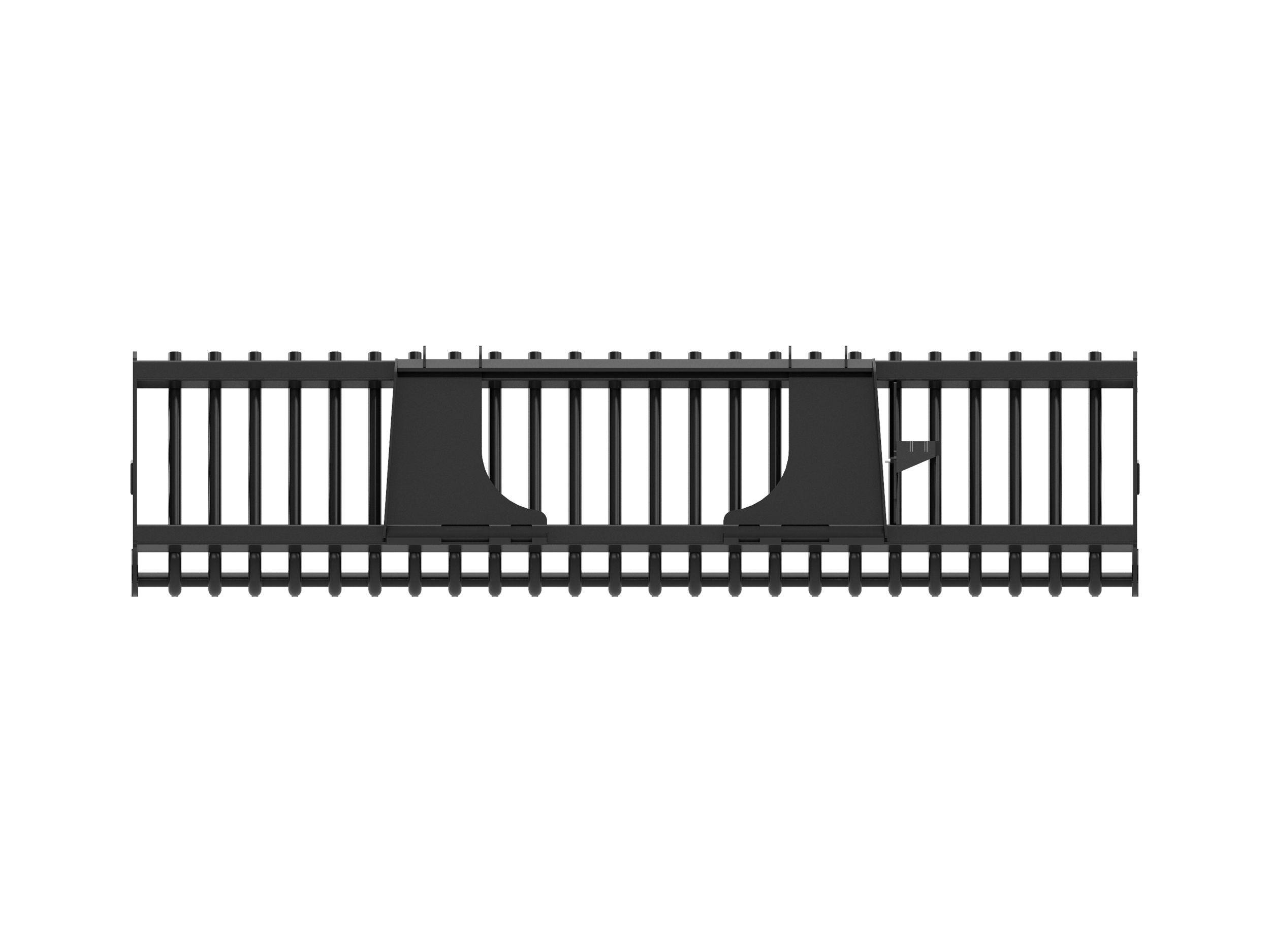

2397 mm (94 in), Rod Tine Style
Cat® Skeleton Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for removing rocks and larger debris from soil and sand in a variety of applications and materials. These buckets are ideal for agriculture, construction, landscaping, industrial and scrap handling applications.
Width
94.4 in
Weight
859.8 lb
Height
25.4 in
Specification
Value
Width
94.4 in
Weight
859.8 lb
Height
25.4 in
Length
47.2 in
Sidewall Thickness
0.4 in
Tine Spacing
2.5 in
Tine Thickness
1.3 in
Number of Tines
24
Interface Type
Skid Steer Coupler
Designed for screening debris from finer materials such as sand and loose soil, and for reclaiming rock and landscaping materials buried by sediment. Cat® Skeleton buckets are for use on both Cat Skid Steer Loaders and Compact Track Loaders.
Rod tines are 32 mm (1.25 in) in diameter with 16 mm thick tine points improving breakout force by initially separating rock from soil more efficiently than a cutting edge.
Rock dam improves material retention, reduces spillage and increases productivity.
Serrated step ensures operator stability for entering and exiting the cab.
Wide tine spacing allows for quicker screening and greater material separation.
