639 mm (25 in)

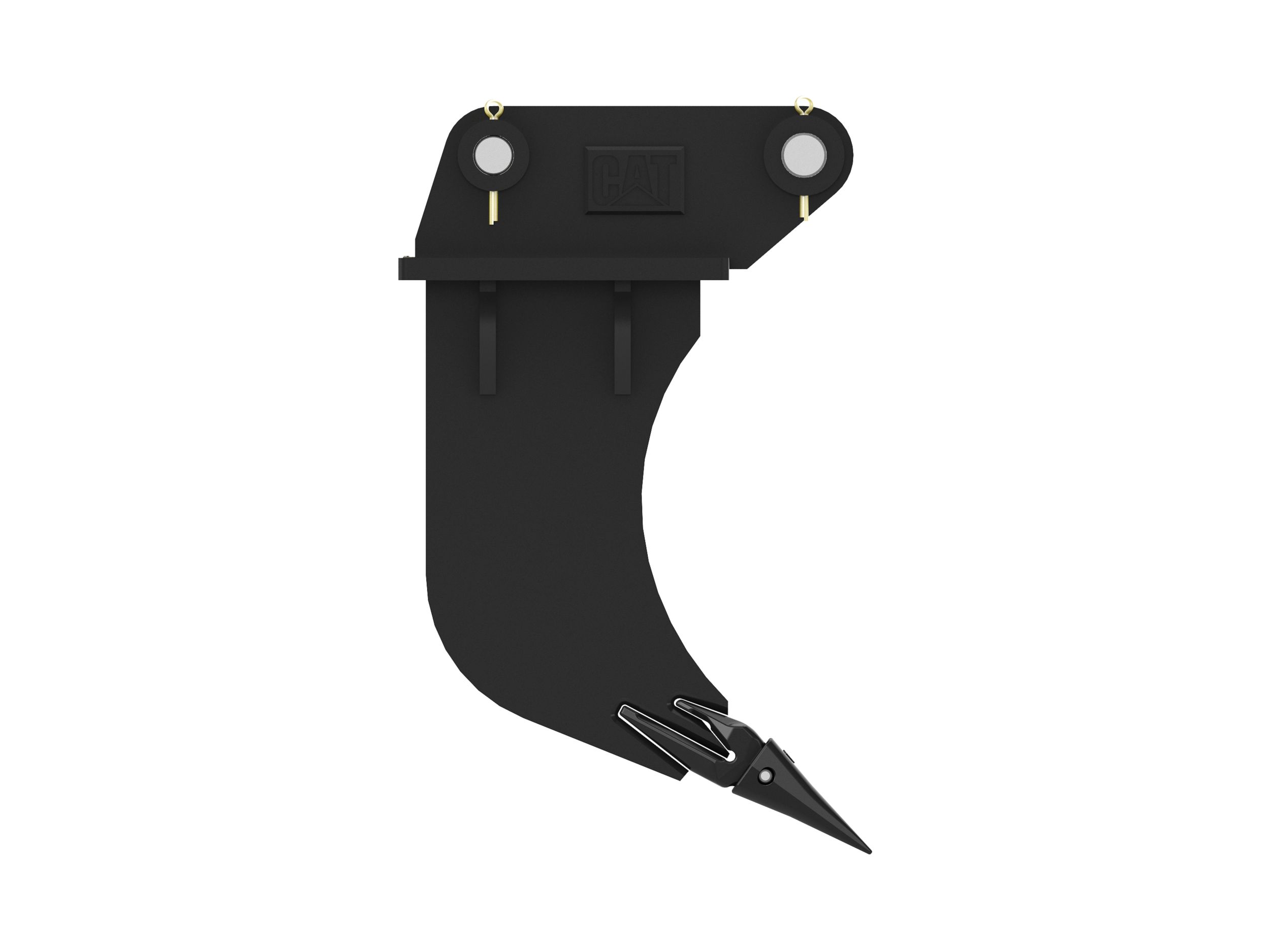

Cat® Rippers offer a cost-effective alternative to blasting. In quarry production work, they offer a lower cost per ton, better product quality and less environmental impact than explosive excavation. They are the ideal tool for land clearing or site preparation in rock, quarry work and similar high-impact digging applications. Take productivity to the next level with a Cat Rip & Load package. A quick coupler switches you rapidly between the ripper, and an Extreme Duty Rock bucket. Pull the rock from the ground and load it with the same machine.
Shank Length
25.2 in
Weight
240.3 lb
Overall Length
32.8 in
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Shank Length
25.2 in
Weight
240.3 lb
Overall Length
32.8 in
Width
16.5 in
Tip Radius
31.7 in
Designed for land clearing or site preparation in rock, quarry work and similar high-impact digging applications.
Available as pin-on, also works with several popular quick couplers.
Reinforced, one piece shank is made of Hardox® 400. Includes adjuster group and Cat® Ground Engaging Tools. Gussets on top plate designed to withstand side loads.
Teeth are common with Cat® buckets and thumbs.
Curved shape works with existing thumbs.
