3.0 m (10 ft)

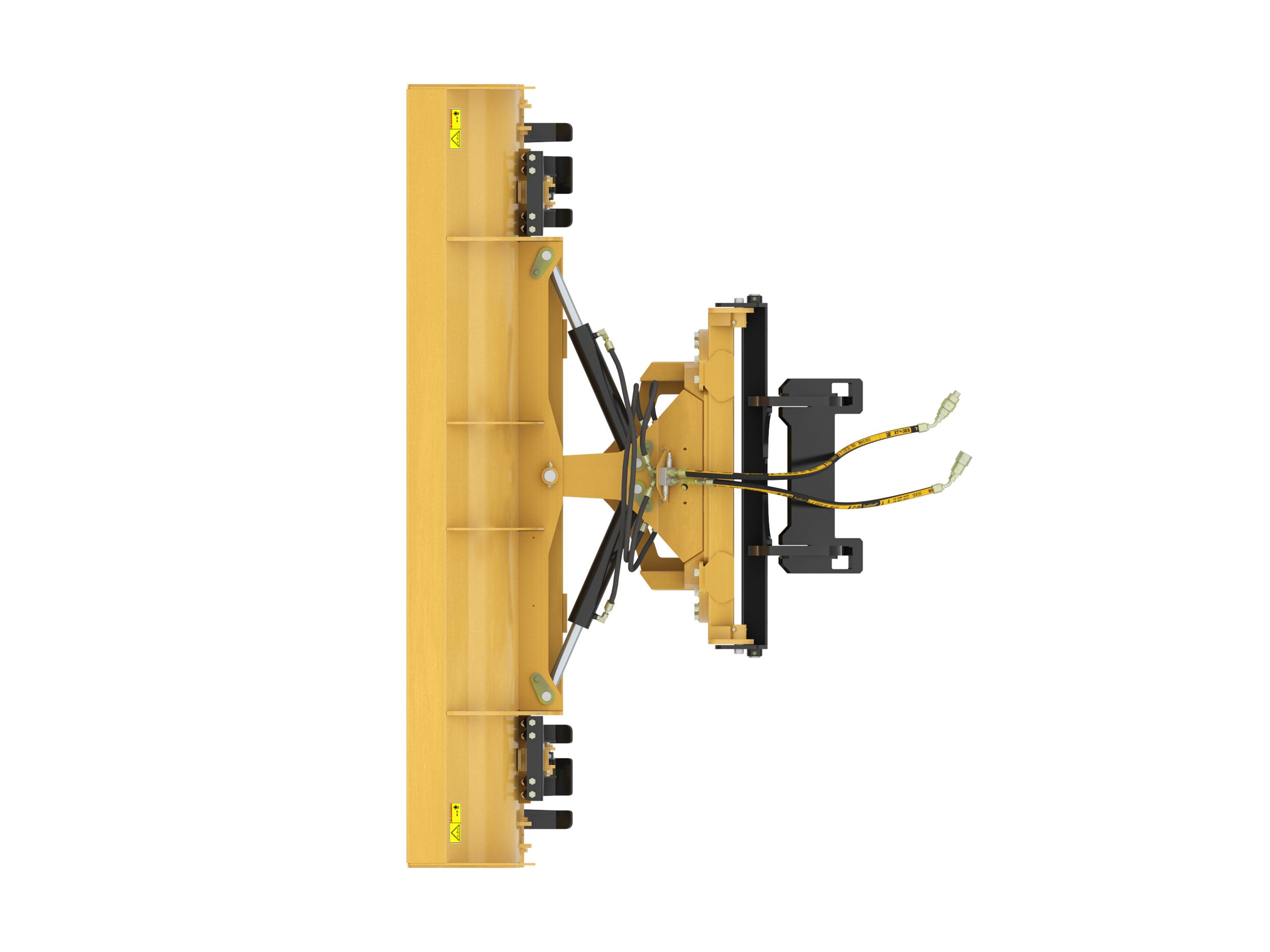

Cat® Snow Plows are designed for snow removal applications in parking lots, driveways, airport runways and storage lots. The design of the plow scrapes the surface and can angle to windrow material to one side. The trip edge system protects your machine and tool from unseen obstacles by retracting when objects such as a manhole cover or large rocks are hit.
Width
120 in
Angled Width
98.3 in
Weight
3062.2 lb
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Width
120 in
Angled Width
98.3 in
Weight
3062.2 lb
Overall Height
41.9 in
Blade Height
42.2 in
Length
69.9 in
Hydraulic Angling - Left/Right of Center
±35 Degrees
Float
±5 Degrees
Interface Type
Fusion™ Coupler
Trip Edge Type
Steel
Trip Edge Height
7.6 in
Trip Edge Quantity
2
Hydraulic angling up to 35 degrees to windrow snow to the designated side of the machine.
Profiled moldboard design rolls and folds snow, maximizing material moved by the snow plow and improving productivity by minimizing snow clinging to its surface.
Blade float allows plow the ability to pivot up to five degrees about the plow frame allowing the blade to follow surface contours and plow more efficiently. Float is easily adjustable with just four bolts on the tool frame.
Adjustable skid shoes on Skid Steer, Compact Track and Multi Terrain Loader models allow for improved operator control and maintain a constant cutting edge depth. Larger models are equipped with bolt-on skid plates. Both skid designs reduce the chances of gouging the plowed surface.
Fitted with up to two cutting edges, Cat® Snow Plows are equipped with a trip edge system incorporated into the base. The sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the Snow Plow and machine.
Bolt-On step for the Skid Steer Loader/Compact Track Loader/Multi Terrain Loader models provides safe and ergonomic access to machine cab that is easily replaceable if damaged.
