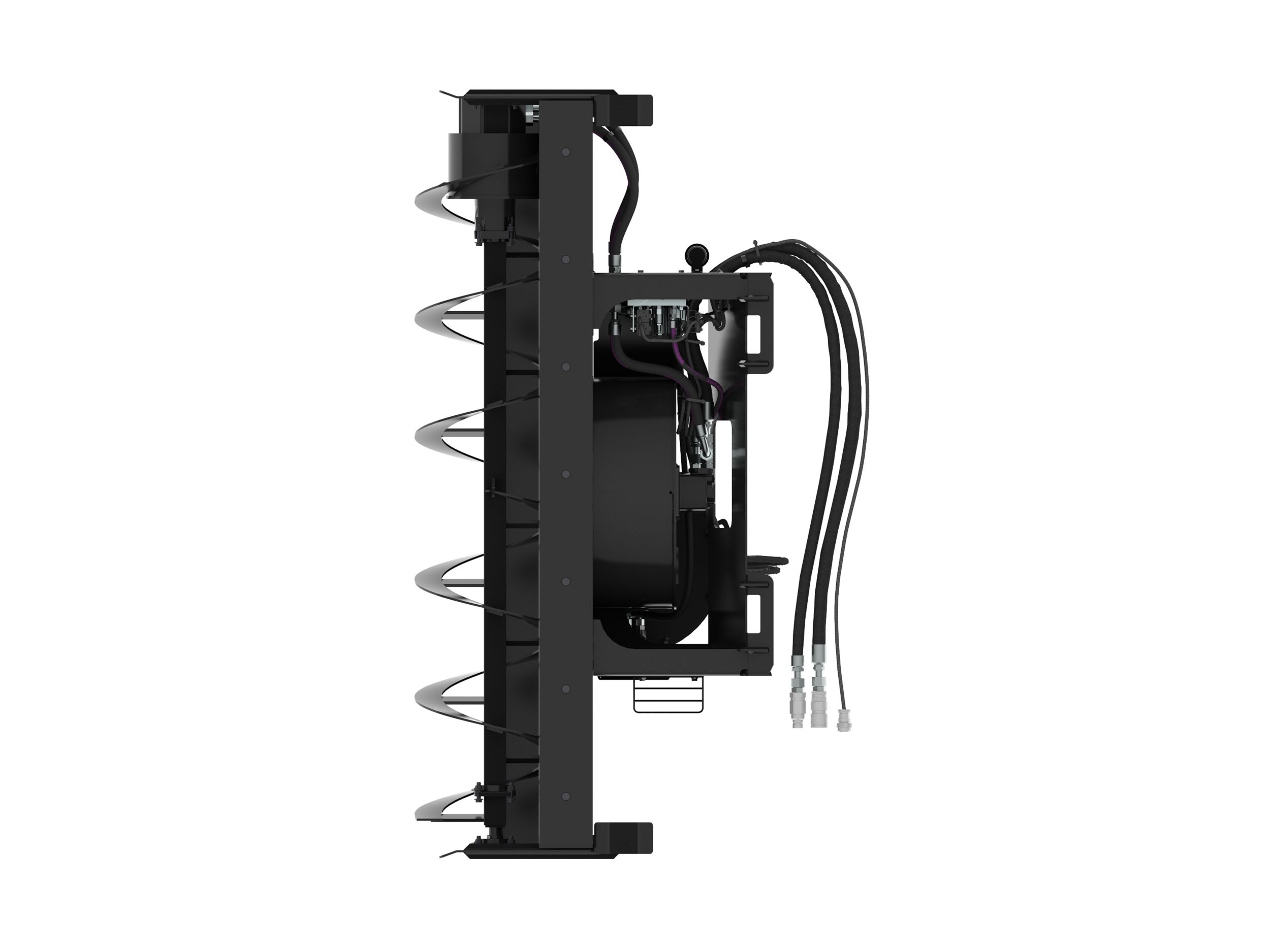

SR421
Cat® Snow Blowers are designed for removing snow from streets, parking lots, driveways and sidewalks, making them ideal for various winter cleanup and maintenance applications.
Intake Width
76.5 in
Overall Width
85.9 in
Weight
1016.3 lb
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Intake Width
76.5 in
Overall Width
85.9 in
Weight
1016.3 lb
Overall Height
72.6 in
Overall Length
37.4 in
Required Hydraulics
XHP / XE
Optimal Hydraulic Flow
125-150 L/min (33-40 gpm)
Optimal Hydraulic Pressure
200-280 bar (2800-4100 psi)
Cutting Height
34.1 in
Maximum Throw
40 ft
Auger Diameter
18 in
Impeller Fan Diameter
25 in
Impeller Fan Width
8.7 in
Chute Rotation
270 degrees
Designed for removing snow from streets, parking lots, driveways and sidewalks.
Two-stage design uses auger and impeller to move a greater capacity of snow quickly and efficiently. Also, the auger and impeller are reversible which allows the operator to expel obstructions without exiting the machine.
Provides smooth operation and continuous flow of material in a variety of snow conditions.
Machine joysticks control chute and deflector. No additional wires or hardware to connect. Complete control with plug-n-play simplicity.
270 degrees of rotation permits snow discharge to front or sides of machine preventing snow blow back on operator. Hydraulically controlled deflector makes it easy to control how far snow is thrown.
Improves visibility and allows full range of motion on Compact Wheel Loader machines.
Adjust height of cutting edge to suit the job needs.
Bolt-on reversible cutting edge adds extra life to the cutting edge and make replacement simple.
Wide steps with grating and large profile serrations provide better traction. Chute mounted grab handle allows stability when entering and exiting machine.
Tool mounted and sealed from the elements, this holder includes all the operation manuals and maintenance guides required for proper operation of the tool.
