CB10

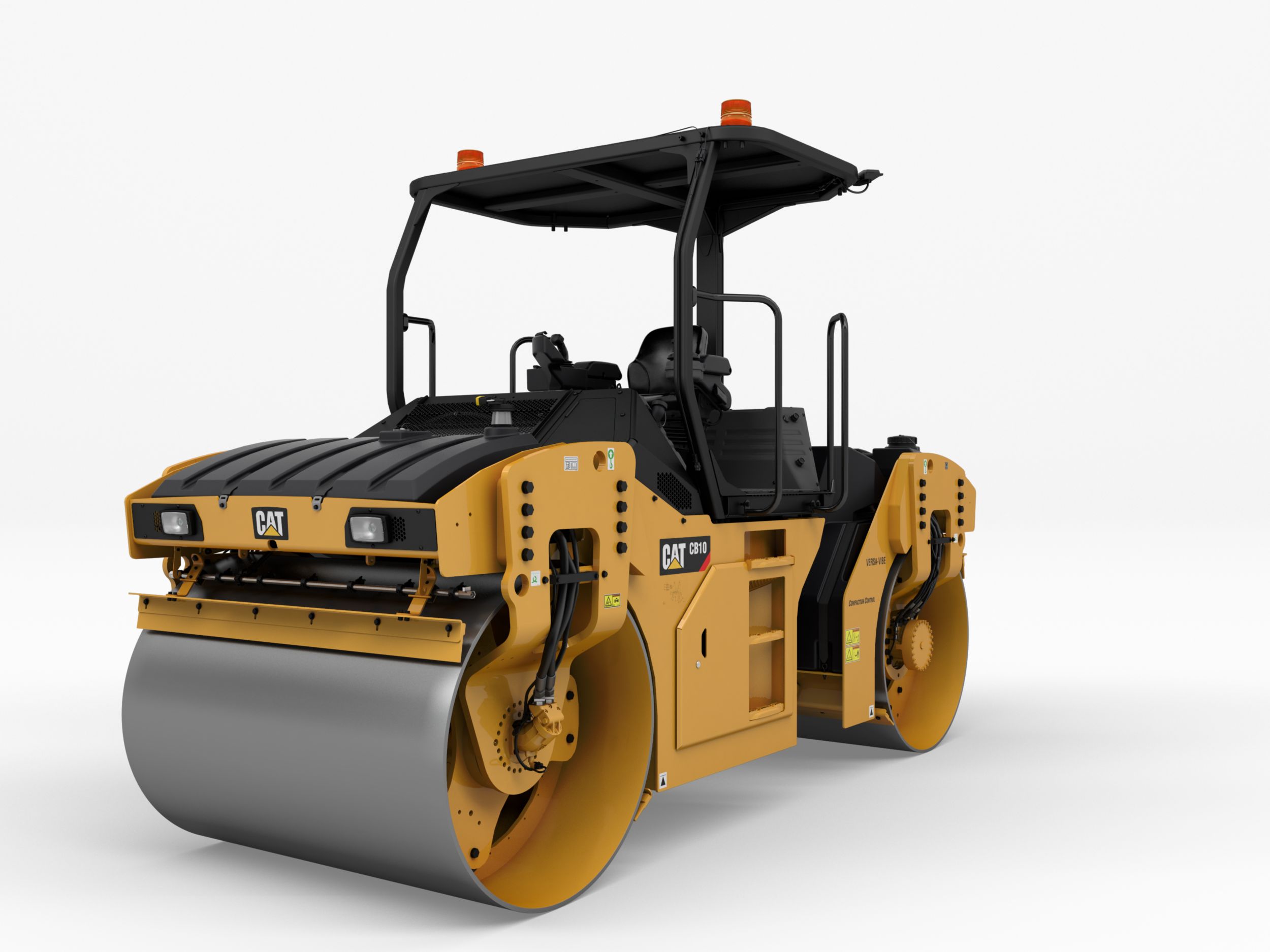

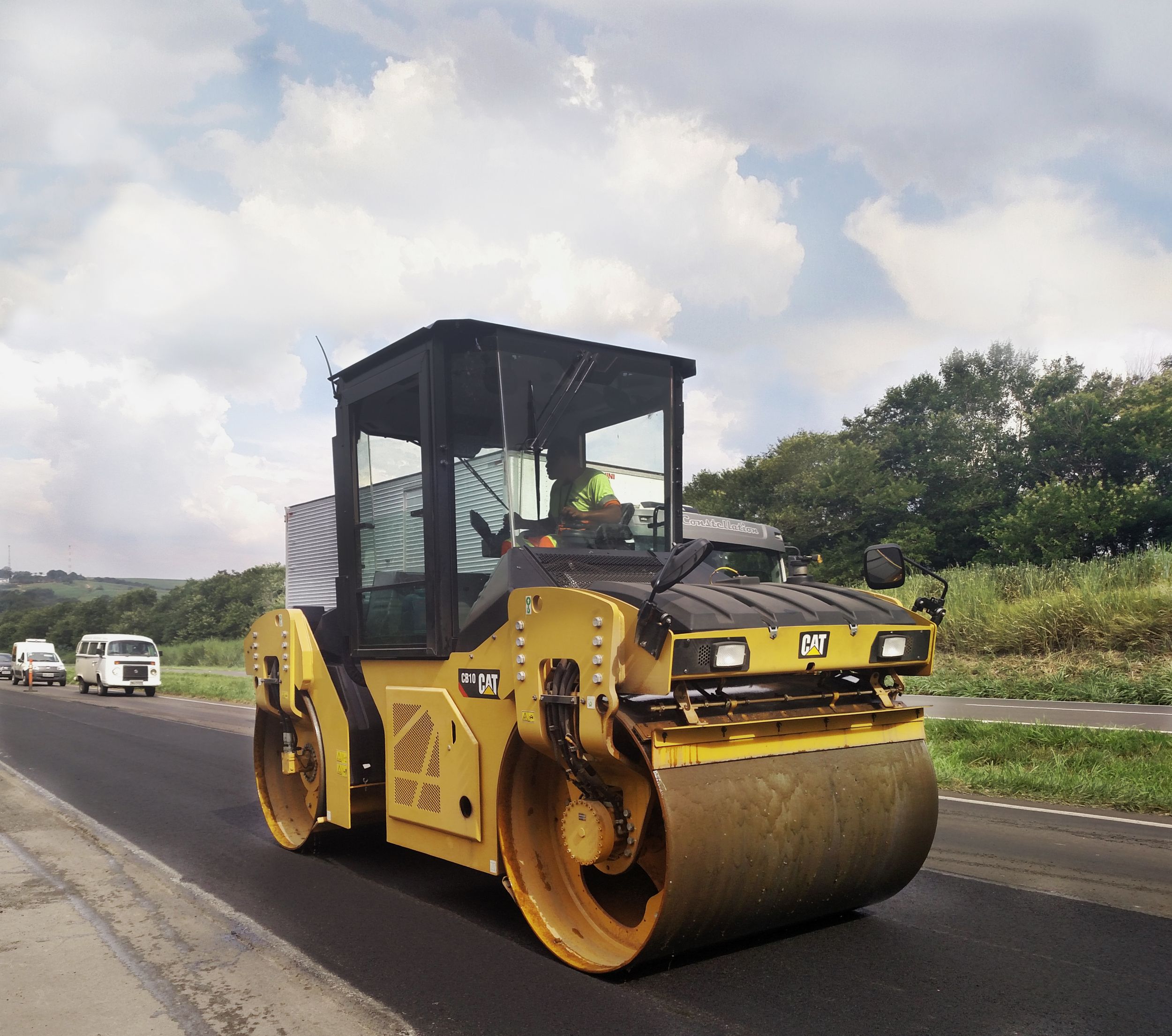

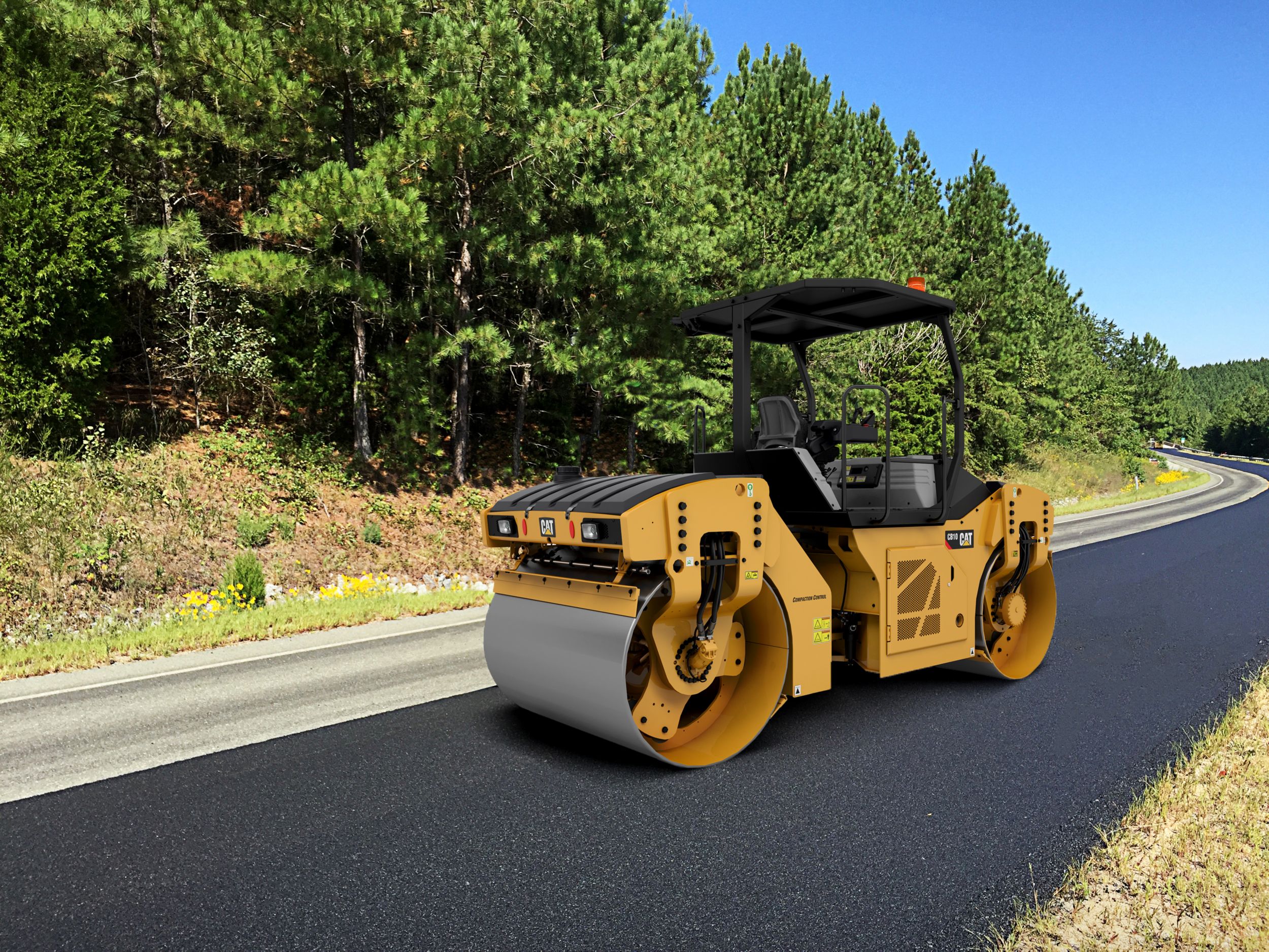

The Cat® CB10 Solid Drum is a 10 ton roller with 1700 mm (67") tandem vibratory drums. It excels on a variety of asphalt mix designs as well as other granular materials. It features exceptional visibility and control, smooth operating powertrain, and versatile vibratory systems including Oscillation Technology.
Standard Operating Weight with Cab
21407 lb
Maximum Operating Weight with Cab
23171 lb
Maximum Operating Weight with ROPS
22564 lb
Specification
Value
Standard Operating Weight with Cab
21407 lb
Maximum Operating Weight with Cab
23171 lb
Maximum Operating Weight with ROPS
22564 lb
Standard Operating Weight with ROPS
20945 lb
Operating Weight
20945 lb
Specification
Value
Standard Compaction Width
67.0 in
Travel Speed - Maximum
7.5 mile/h
Static Linear Load
160 lb/in
Maximum Compaction Width
73.0 in
Specification
Value
Gross Power
131.8 HP
Engine Model
Cat C4.4 with ACERT Technology
Specification
Value
Overall Length
177.0 in
Wheel Base
130.0 in
Height - With ROPS/FOPS
117.0 in
Overall Width
73.0 in
Drum Diameter
47.0 in
Specification
Value
Drum Width
67 in
Vibration Selection
Independent per drum, front only, rear only, both
Centrifugal Force per Drum - Minimum
6092 lb
Centrifugal Force per Drum - Maximum
28977 lb
Nominal Amplitude - High
0.033 in
Nominal Amplitude - Low
0.007 in
Specification
Value
Fuel Tank Capacity
55.0 gal (US)
Water Spray Tank Capacity
221 gal (US)
