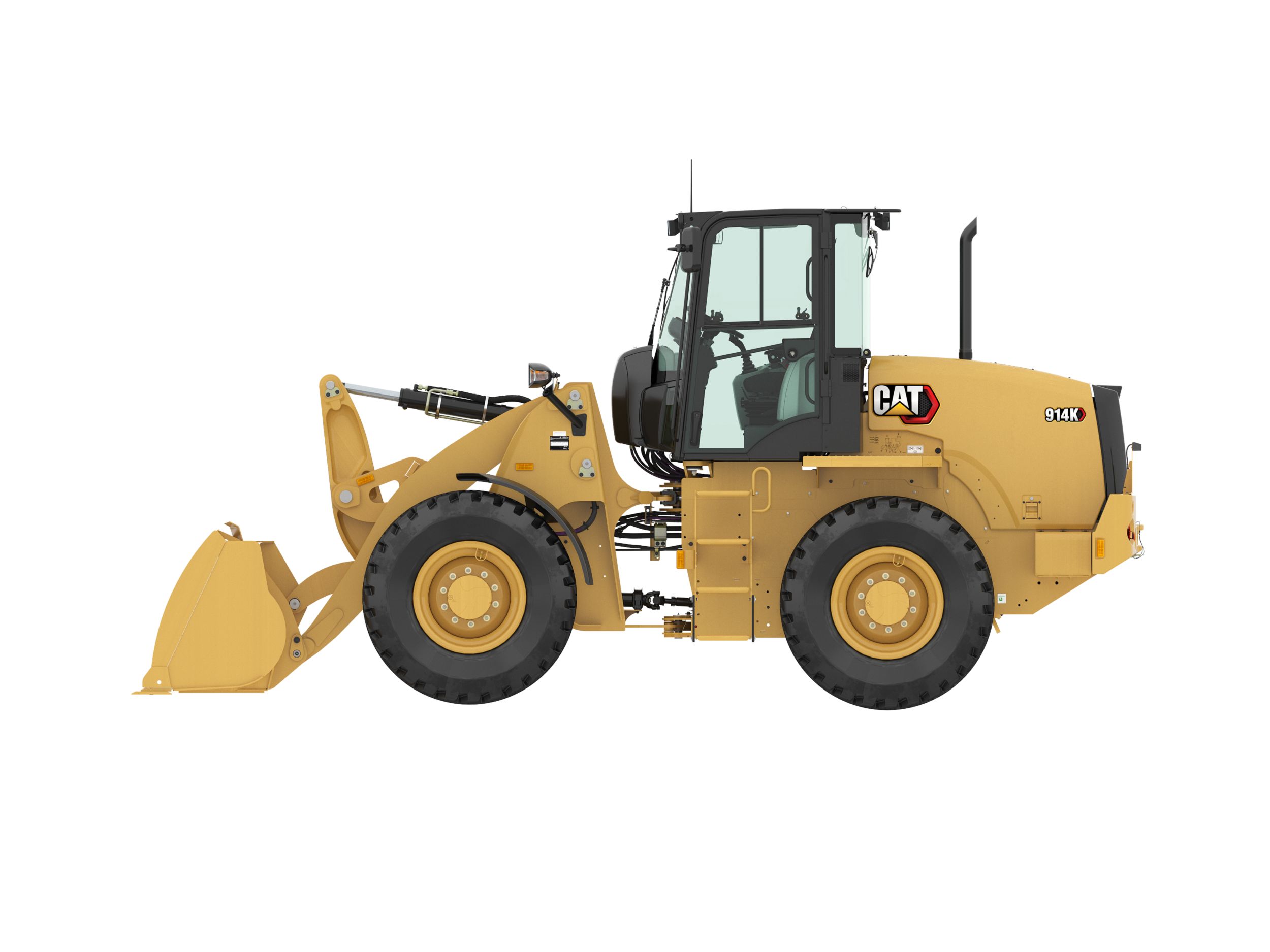

914K
The Cat® 914K Compact Wheel Loader features an optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar loader with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.
Maximum Gross Power
100 HP
Engine Model
Cat C4.4
Maximum Gross Power - Maximum Engine Speed
2350 r/min
Specification
Value
Maximum Gross Power
100 HP
Engine Model
Cat C4.4
Maximum Gross Power - Maximum Engine Speed
2350 r/min
Maximum Gross Power - SAE J1995
102 HP
Maximum Gross Power - ISO 14396
100 HP
Maximum Gross Power - ISO 14396 (DIN)
102 HP
Rated Net Power - Rated Engine Speed
2200 r/min
Rated Net Power - SAE J1349
98 HP
Rated Net Power - ISO 9249
99 HP
Rated Net Power - ISO 9249 (DIN)
101 HP
Displacement
268 in³
Bore
4.13 in
Stroke
5 in
Maximum Gross Torque - SAE J1995
306 ft·lbf
Maximum Gross Torque - ISO 14396
302 ft·lbf
Maximum Net Torque - SAE J1349
295 ft·lbf
Maximum Net Torque - ISO 9249
299 ft·lbf
Emissions
Engine meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3/EU Stage IIIA.
Note
Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Specification
Value
Operating Weight
18884 lb
Specification
Value
Bucket Capacities
1.6-3.5 m3 (2.1-4.6 yd3)
General Purpose
1.6-1.9 m3 (2.1-2.5 yd3)
Light Material
2.5-3.5 m³ (3.2-4.6 yd³)
Specification
Value
Steering Articulation Angle - Each Direction
40 °
Maximum Flow - Steering Pump
22 gal/min
Maximum Working Pressure - Steering Pump
2901 psi
Steering Cycle Times - Lock to Lock - At 2,350 rpm
2.3 s
Number of Steering Wheel Turns - Lock to Lock
3.4 turns
Specification
Value
Maximum Flow - Implement Pump
39 gal/min
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard
25 gal/min
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High
32 gal/min
Maximum Flow - Implement Pump - 4th Function, Maximum Flow
25 gal/min
Maximum Working Pressure - Implement Pump
4061 psi
Relief Pressure - Tilt Cylinder
4641 psi
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure
4061 psi
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure
3626 psi
Hydraulic Cycle Time - Maximum Engine Speed - Raise, Ground Level to Maximum Lift
5.2 s
Hydraulic Cycle Time - Maximum Engine Speed - Dump, at Maximum Reach
1.4 s
Hydraulic Cycle Time - Maximum Engine Speed - Rack Back
2.2 s
Hydraulic Cycle Time - Maximum Engine Speed - Float Down, Maximum Lift to Ground Level
3.7 s
Hydraulic Cycle Time - Maximum Engine Speed - Total Cycle Time
12.5 s
Specification
Value
Fuel Tank
40.7 gal (US)
Cooling System
5.7 gal (US)
Engine Crankcase
2.4 gal (US)
Axles - Front Center Differential
2 gal (US)
Axles - Rear Center Differential
2 gal (US)
Hydraulic System - Including Tank
25.9 gal (US)
Hydraulic Tank
14.5 gal (US)
Transmission
0.9 gal (US)
Specification
Value
Forward and Reverse - Low Range, Speed Range 1*
6.3 mile/h
Forward and Reverse - Low Range, Speed Range 2*
12.5 mile/h
Note
*Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.
Specification
Value
Standard Size
17.5-25 16 PR (L-3)
Other Choices Include
17.5-25 12 PR (L-2), 1PC Rim; 17.5-25 12 PR (L-3), 1PC Rim; 17.5R-25, radial (L-3), 1 or 3PC Rim
Note (1)
Tire options may vary by region. Contact your Cat dealer for details.
Note (2)
In certain applications, the loader's productive capabilities may exceed the tire's tonnes-km/h (ton-mph) capabilities.
Note (3)
Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Specification
Value
ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level II
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard.
Note (2)
The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 77 dB(A).
Note (3)
The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 103 dB(A).
Note (4)
*The measurements were conducted with the cab doors and windows closed.
Specification
Value
Front
Fixed; Locking differential (standard)
Rear
Oscillating ±11 degrees; Locking differential (standard)
With its high full turn tipping loads and breakout forces, the K Series delivers a powerful solution for all customer applications.
State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. All-in-one joystick helps keep eyes on the work. Operator can adjust machine responsiveness with the push of a button, which allows the operator to set up the machine exactly the way they want it based on the application.
The Cat® Optimized Z-bar Loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.
1550 mm (61 in)
1614 mm (64 in)
1550 mm (61 in)
2134 mm (84 in)
2196 mm (87 in)
BA25 Manual
BP25
1.7 m3 (2.2 yd3), IT Coupler, Bolt-On Cutting Edge
1.3 m3 (1.7 yd3), IT Coupler, Bolt-On Cutting Edge
1.4 m3 (1.8 yd3), Pin On, Bolt-On Cutting Edge
1.3 m3 (1.7 yd3), ISO Coupler, Bolt-On Cutting Edge
1.4 m3 (1.8 yd3), ISO Coupler, Bolt-On Teeth
1.2 m3 (1.6 yd3), ISO Coupler, Bolt-On Teeth
1.2 m3 (1.6 yd3), IT Coupler, Bolt-On Teeth
1.5 m3 (2.0 yd3), ISO Coupler, Bolt-On Cutting Edge
1.4 m3 (1.8 yd3), IT Coupler, Bolt-On Teeth
1.6 m3 (2.1 yd3), IT Coupler, Bolt-On Cutting Edge
1.3 m3 (1.7 yd3), Pin On, Bolt-On Teeth
1.6 m3 (2.1 yd3), Pin On, Bolt-On Cutting Edge
1.6 m3 (2.1 yd3), ISO Coupler, Bolt-On Teeth
1.9 m3 (2.5 yd3), ISO Coupler, Bolt-On Cutting Edge
1.5 m3 (2.0 yd3), IT Coupler, Bolt-On Teeth
1.9 m3 (2.5 yd3), IT Coupler, Bolt-On Cutting Edge
1.5 m3 (2.0 yd3), Pin On, Bolt-On Teeth
1.6 m3 (2.1 yd3), IT Coupler, Bolt-On Teeth
1.5 m3 (2.0 yd3), IT Coupler, Bolt-On Cutting Edge
1.9 m3 (2.5 yd3), Pin On, Bolt-On Cutting Edge
1.8 m3 (2.4 yd3), Pin On, Bolt-On Cutting Edge
1.7 m3 (2.2 yd3), Pin On, Bolt-On Teeth
1.8 m3 (2.4 yd3), Pin On, Bolt-On Teeth
1.6 m3 (2.1 yd3), ISO Coupler, Bolt-On Cutting Edge
1.7 m3 (2.2 yd3), ISO Coupler, Bolt-On Cutting Edge
1.9 m3 (2.5 yd3), ISO Coupler, Bolt-On Cutting Edge
1.8 m3 (2.4 yd3), ISO Coupler, Weld-On Teeth
1.6 m3 (2.1 yd3), ISO Coupler, Weld-On Teeth
1.5 m3 (2.0 yd3), ISO Coupler, Weld-On Teeth
2.5 m3 (3.3 yd3), IT Coupler, Bolt-On Cutting Edge
2.5 m3 (3.3 yd3), ISO Coupler, Bolt-On Cutting Edge
2.5 m3 (3.3 yd3), Pin On, Bolt-On Cutting Edge
3.0 m3 (3.9 yd3), IT Coupler, Bolt-On Cutting Edge
3.0 m3 (3.9 yd3), ISO Coupler, Bolt-On Cutting Edge
3.0 m3 (3.9 yd3), Pin On, Bolt-On Cutting Edge
3.5 m3 (4.6 yd3), IT Coupler, Bolt-On Cutting Edge
3.5 m3 (4.6 yd3), ISO Coupler, Bolt-On Cutting Edge
3.5 m3 (4.6 yd3), Pin On, Bolt-On Cutting Edge
3.0 m3 (3.9 yd3), Fusion™ Coupler, BOCE
2.5 m3 ( 3.3 yd3), IT Coupler, Bolt-On Cutting Edge
2.1 m3 ( 2.7 yd3), IT Coupler, Bolt-On Cutting Edge
2.1 m3 ( 2.7 yd3), ISO Coupler, BOCE
3941 mm (155 in)
3.66 m (12 ft)
3.66 m (12 ft)
3.05 m (10 ft)
3.66 m (12 ft)
3.0 m (10 ft)
3.7 m (12 ft)
2.7 m (9 ft)
VisionLink®
1.7 m3 (2.2 yd3), ISO Coupler, Bolt-On Cutting Edge
2.5 m3 (3.3 yd3), Fusion™ Coupler, BOCE
3.5 m3 (4.6 yd3), Fusion™ Coupler, BOCE
2.5 m3 ( 3.3 yd3), ISO Coupler, BOCE
3.05 m (10 ft)
3.66 m (12 ft)
3.05 m (10 ft)
3.05 m (10 ft)
