C32 910 kVA - 1500 kVA
C32 (50 Hz)

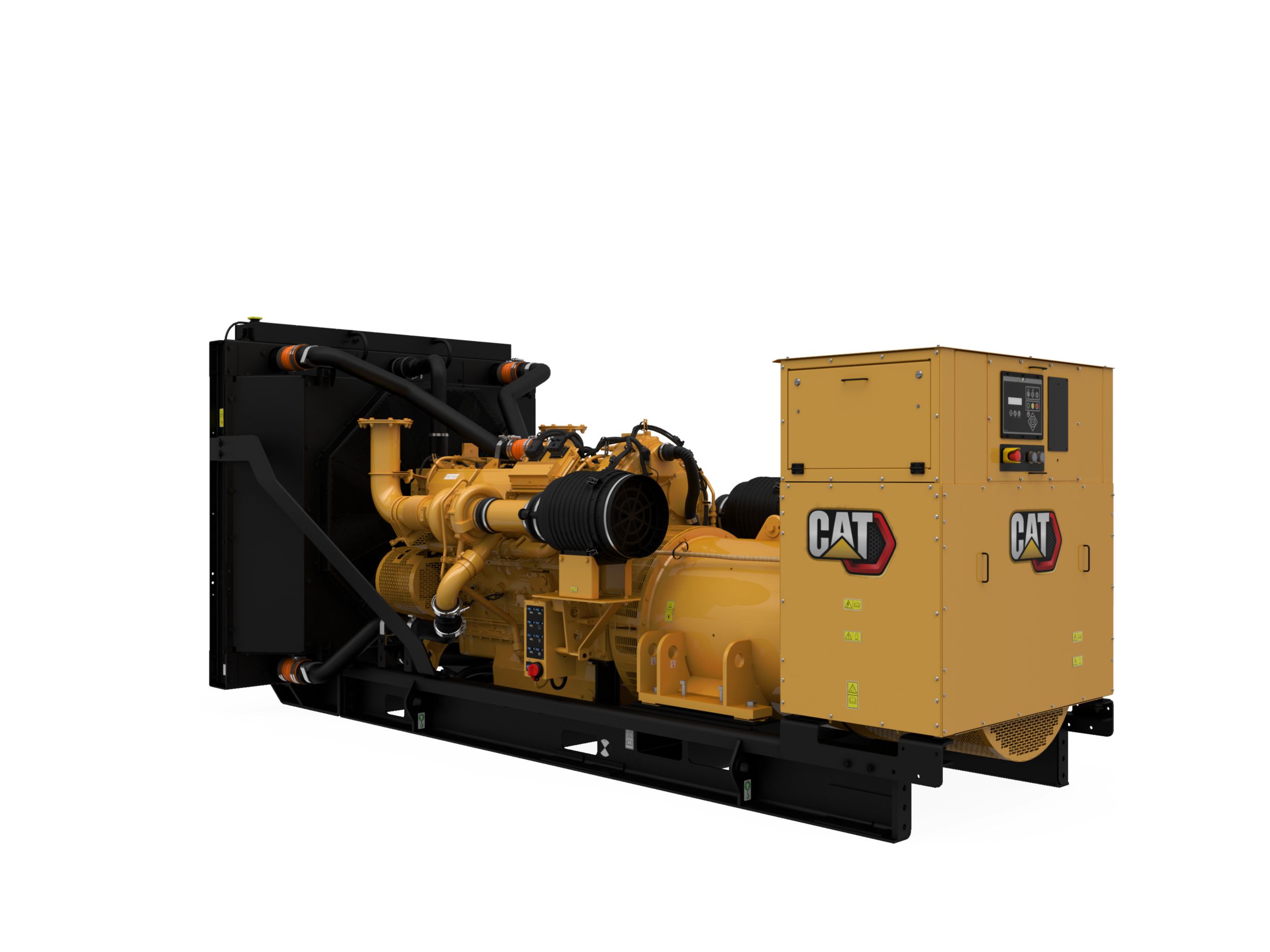

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.Producing reliable power from 910 kVA to 1500 kVA at 50 Hz, our C32 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100 % rated load in one step. Generator sets range from low fuel consumption to low emissions systems. Seismic certification is also available for select models, ensuring you maintain power after unexpected disturbances. Our integrated control system, including ATS and switchgear, protects your power supply and keeps you connected through on-site and remote monitoring options. We offer easy-to-use EMCP control panel options, combining your management and diagnostic tools in one. The EMCP 4.4 controller provides multi-generator set paralleling capability, giving you the ability to add generator sets to match your growing power requirements. Browse a broad range of accessories and bolt-on system expansion attachments. Find flexible packaging to fit unique spatial requirements and environmental conditions. Our C32 generator sets are made for demands, so you can make yours.
Maximum Rating
1500 kVA
Minimum Rating
910 kVA
Emissions/Fuel Strategy
Low Fuel, Low Emissions
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Maximum Rating
1500 kVA
Minimum Rating
910 kVA
Emissions/Fuel Strategy
Low Fuel, Low Emissions
Voltage
400 to 3300 Volts
Frequency
50 Hz
Speed
1500 rpm
Duty Cycle
Standby, Mission Critical, Prime, Continuous
Specification
Value
Engine Model
C32 TA, V-12, 4-Stroke Water-Cooled Diesel
Bore
5.71 in
Stroke
6.38 in
Displacement
1958.86 in³
Compression Ratio
15.0:1
Aspiration
TA
Fuel System
MEUI
Governor Type
Adem™A4
Specification
Value
Length - Minimum
164 in
Length - Maximum
176.6 in
Width - Minimum
66.3 in
Width - Maximum
87.8 in
Height - Minimum
85.1 in
Height - Maximum
86.4 in
Dry Weight - Genset (minimum)
14700 lb
Dry Weight - Genset (maximum)
17855 lb
