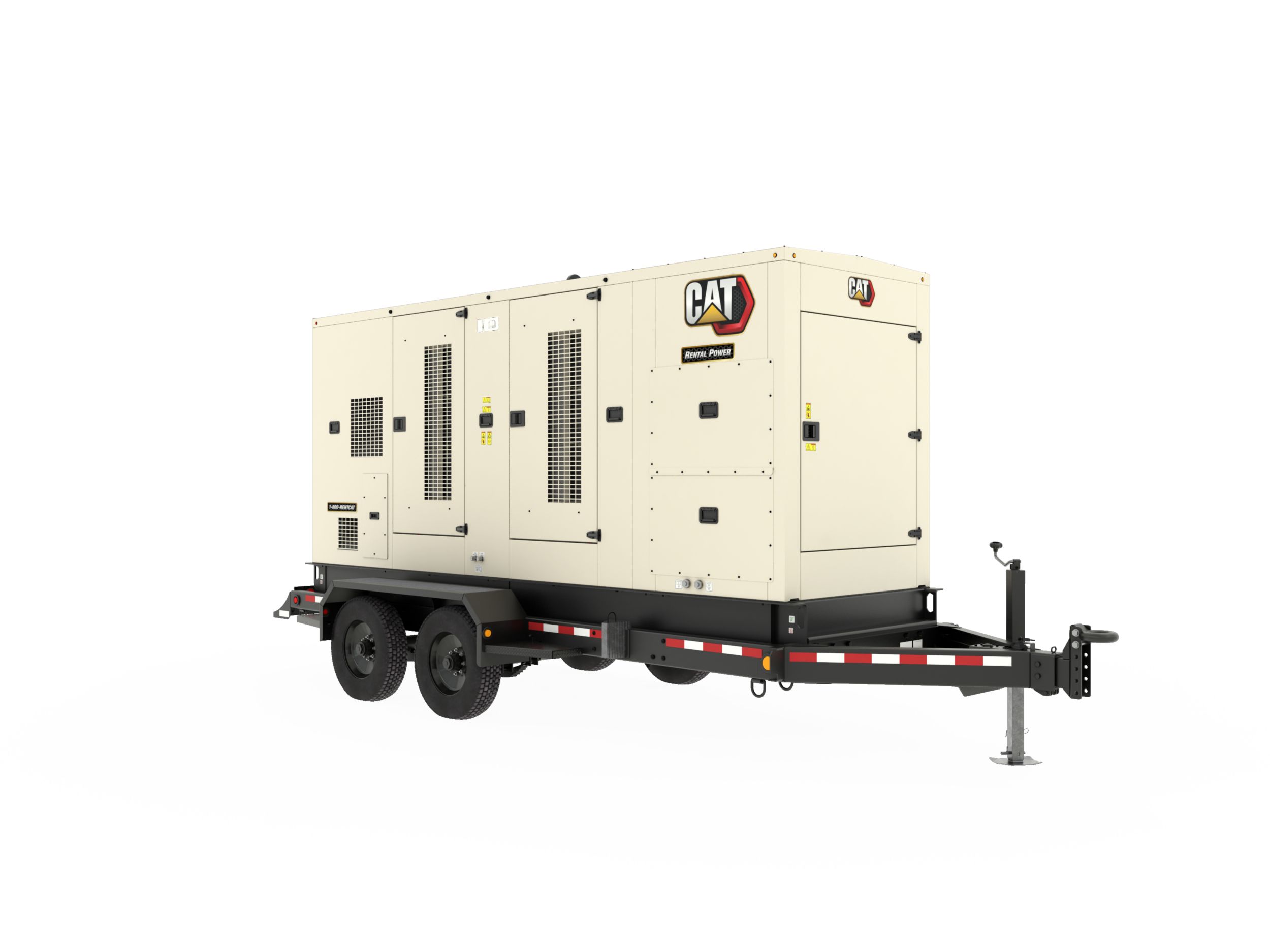

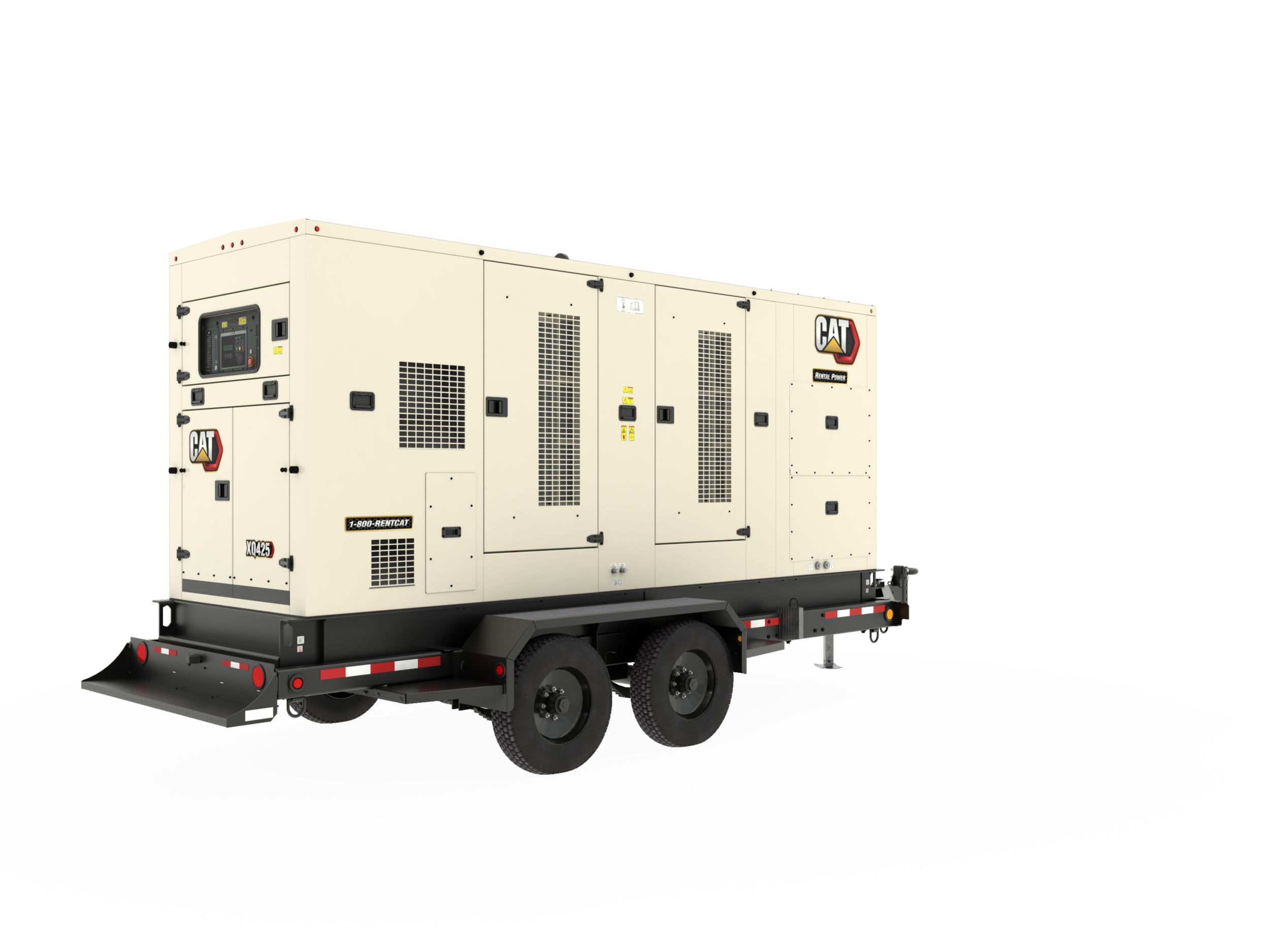

XQ425 Tier 4 Final
The Cat® XQ425 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C13 engine equipped with the Cat NOx Reduction System. Equipped with the new EMCP 4.4 control panel, the XQ425 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.
Rating Prime
340 ekW (425 kVA)
Frequency
50/60 Hz
Voltage
120 - 600V
Specification
Value
Rating Prime
340 ekW (425 kVA)
Frequency
50/60 Hz
Voltage
120 - 600V
Rating Standby
375 ekW (469 kVA)
Specification
Value
Engine
C13
Fuel
Diesel
Specification
Value
Height - Without Trailer
60 in
Length - Without Trailer
208.7 in
Width - Without Trailer
104 in
Weight with Lube Oil and Coolant, Without Trailer
14700 lb
Specification
Value
100% Load 60Hz
23.1 gal/hr
75% Load 60Hz
17.7 gal/hr
50% Load 60Hz
12.7 gal/hr
100% Load 60Hz
25.1 gal/hr
75% Load 60Hz
19.2 gal/hr
50% Load 60Hz
13.6 gal/hr
Specification
Value
Sound Power @ 7 meters (23 feet) @ All Ratings
74 dB(A)
Robust, durable product with a range of rental ready features to meet job requirements and applications.
Meets U.S. EPA Tier 4 Final emission standards and CARB certified for non-road mobile applications at all 60 Hz ratings
Industry proven reliability
Easy to use digital controls
Integrated voltage regular for fast response in demanding applications
Improved operator comfort
Remote monitoring for fleet management and asset tracking
Single-source Supplier
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Reducing operating costs and producing less waste
Lifting frame, 4 point lift and trailers
Distribution sockets
Synchronising controls.
Extended Service interval kits
600V generator
208V 3-phase NEMA Sockets
Extended Service interval kits
600V generator
208V 3-phase NEMA Sockets
