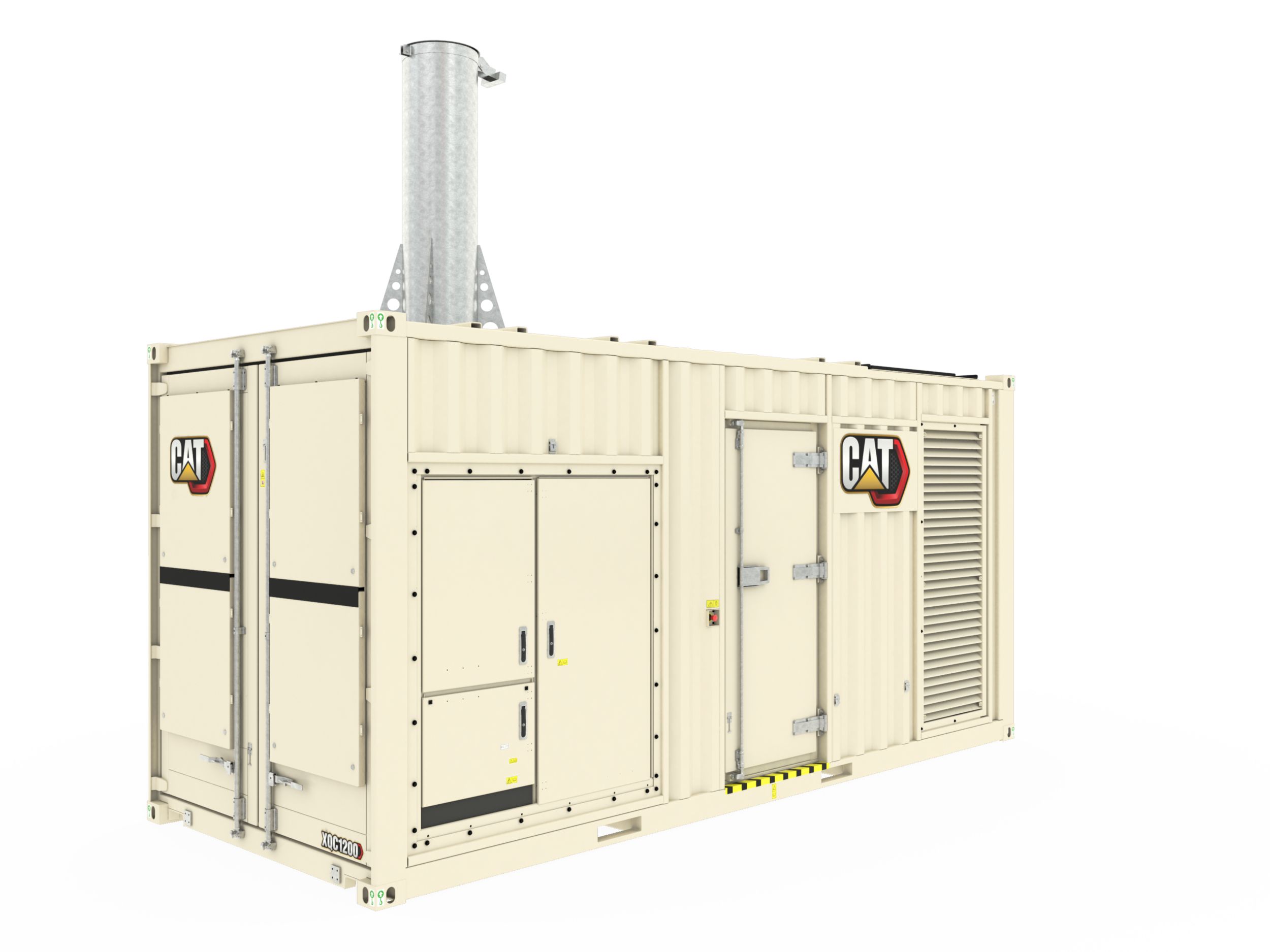

XQC1200
This rental generator set extends the Caterpillar line of rental power options improving efficiency and reduced owning and operating costs. The XQC1200 is equipped with an enhanced control system, designed to reduce installation and startup time. It is configured to switch between 50 and 60Hz ratings at the press of a button. The control system features plant control programming and simulation, allowing complete system testing prior to generator set startup. Advanced product autonomy and monitoring capabilities reduce on-site manpower support requirements, minimize operator exposure to hazards, and permit site performance and maintenance data to be viewed, archived, and analyzed conveniently. Ideal in a stand-alone environment, combined with dozens of units in a power plant solution, or supporting utility systems worldwide.
Rating
1150kW (1438 kVA) Continuous
Frequency
50/60 Hz
Voltage
230 - 480 V
DOWNLOAD TECHNICAL SPECIFICATIONS
Specification
Value
Rating
1150kW (1438 kVA) Continuous
Frequency
50/60 Hz
Voltage
230 - 480 V
IPP Overload 50Hz
1205 ekW (1506 kVA)
IPP Rated 60Hz
1260 ekW (1575 kVA)
IPP Overload 60Hz
1330kW; (1662KVA)
Specification
Value
Engine
Cat 3512C
Fuel
Diesel
Specification
Value
Weight - Without Chassis, With Fuel, Lube Oil and Coolant
47440 lb
Width - Without Chassis
97.5 in
Height - Without Chassis
114.0 in
Length - Without Chassis
240 in
Extensive range of rental ready features to meet job requirements and applications.
Low BSFC and Low Emissions* ratings, switchable via Cat Electronic Technician (ET) * Does not conform to EPA/EU emissions standards
The compact, four-cycle Cat 3512C turbocharged-aftercooled (SCAC) diesel engine provides proven durability and dependability Best-in-class fuel economy Fuel system operates on a variety of fuels 50/60 Hz switchable with neither software re-flashing, nor iron changes required Other engine features include: electric fuel priming, individual cylinder temperature monitoring, and extended filter change intervals
EMCP 4.3 control panel offers engine and generator monitoring and protection On-Package Auto Paralleling Controls AGC-4 provides paralleling, load sharing, VFD control, and additional generator protection
Cat SR500 generator designed to match the performance and output characteristics of the Cat Gas engine. Class H insulation operating at Class F temperature for extended life Coastal insulation protection and anti-condensation space heaters Integrated Voltage Regulator (IVR) for fast response in demanding applications
Provides 40°C (104F) ambient capability at 50 Hz, or 42°C (108F) capability at 60 Hz at the IPP Rating at 750m (2,460 ft) above sea level Variable frequency fan drive with smart fan control Energy efficient electric drive fans
Meets 83 dB(A) (50 Hz) / 85 dBA (60 Hz) at 7m (23 ft) 20' ISO high cube container, 9-high stack CSC certified Service and Personnel doors Externally-accessible controls
Remote monitoring for fleet management and asset tracking.
110% spill containment of onboard engine fluids Positive crankcase fumes ventilation
Generator set manufactured in ISO 9001:2000 compliant facility Package factory designed and production tested
Cat® dealers provide extensive post sale support including maintenance and repair agreements. Supported 100% by the Cat dealer with warranty on parts and labor. Extended Service Coverage (ESC) options available for coverage beyond the Standard Warranty period
