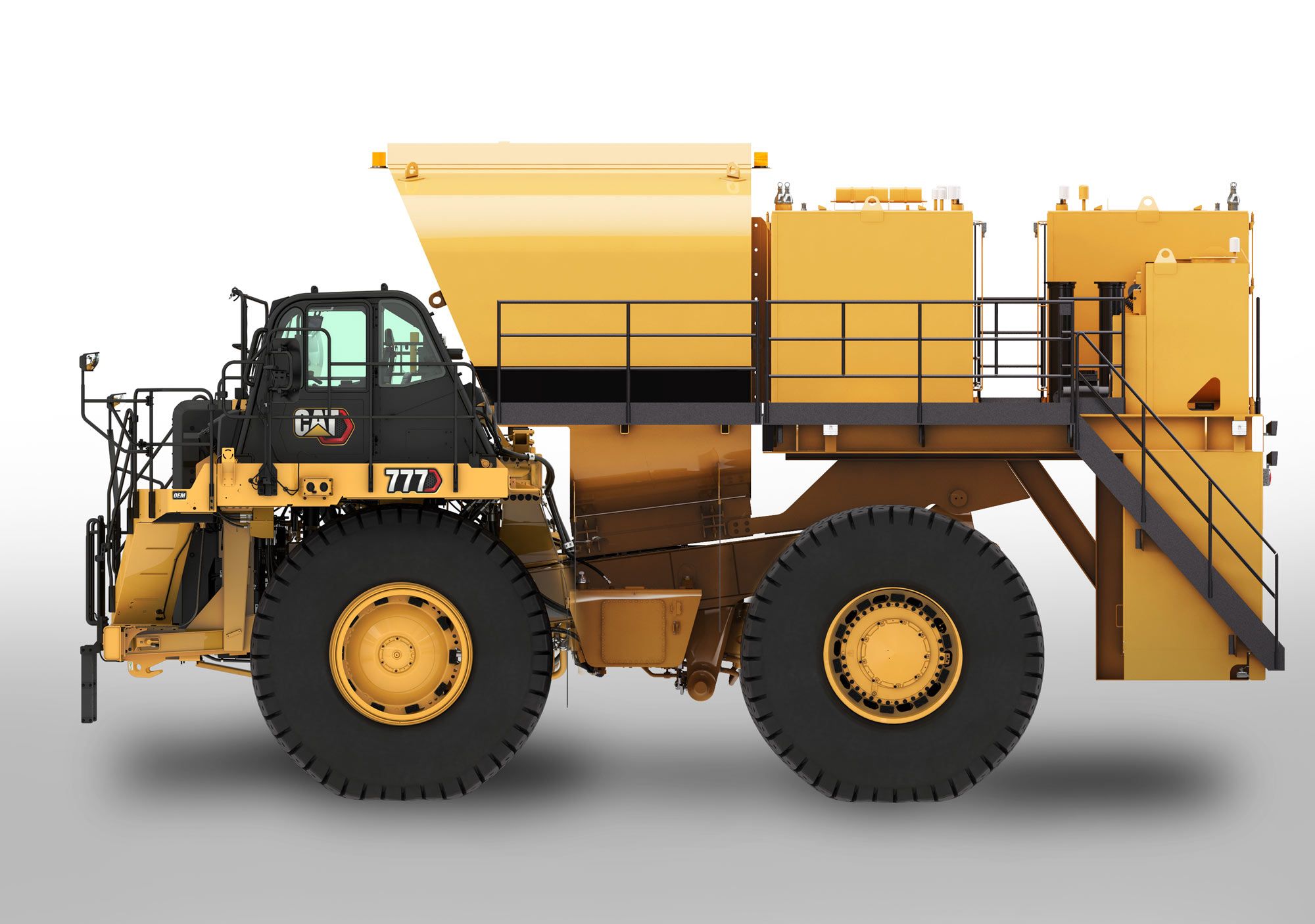

777 (07) Bare Chassis
Caterpillar offers partial machines and systems, working with Cat dealers and Original Equipment Manufacturers (OEMs) to provide specialty machines for specific applications. Bare chassis trucks (WTR models) can be ordered with or without hoist cylinders and most product options are identical to the dump truck models. Typically, these models come equipped with the higher Tractor ROPS certification ratings needed for specialty machines including water trucks, tow trucks, and fuel / lube trucks. These partial machine configurations are used in construction, demolition, waste, material handling, quarry, and mining applications.
The Cat Water Delivery System (WDS) is available as an optional attachment with the 777 WTR, 785D WTR, and 789D WTR Off-Highway Truck Bare Chassis and includes factory installed controls in the cab, a hydraulic pump and motor, a water pump and stainless steel spray heads. Whether your goal is dust control or haul road maintenance, the Cat WDS is designed to put water to the ground in a controlled, intelligent way. The simple to operate automated system allows you to concentrate on more important safety issues like traffic, personnel and road conditions. You'll also find that the Cat WDS not only improves safety, but also reduces truck maintenance costs, conserves water and provides significant fuel savings to help your bottom line.
The Cat Water Delivery System (WDS) is available as an optional attachment with the 777 WTR, 785D WTR, and 789D WTR Off-Highway Truck Bare Chassis and includes factory installed controls in the cab, a hydraulic pump and motor, a water pump and stainless steel spray heads. Whether your goal is dust control or haul road maintenance, the Cat WDS is designed to put water to the ground in a controlled, intelligent way. The simple to operate automated system allows you to concentrate on more important safety issues like traffic, personnel and road conditions. You'll also find that the Cat WDS not only improves safety, but also reduces truck maintenance costs, conserves water and provides significant fuel savings to help your bottom line.
Engine Model
Cat® C32B
Gross Power - SAE J1995
1025 HP
Rated Net Power - SAE J1349
916 HP
Specification
Value
Engine Model
Cat® C32B
Gross Power - SAE J1995
1025 HP
Rated Net Power - SAE J1349
916 HP
Bore
5.7 in
Stroke
6.4 in
Displacement
1959 in³
Rated Engine Speed
1800 r/min
Number of Cylinders
12
Note
Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator. U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.
Specification
Value
LRC Bare Chassis Weight without Hoist
111505 lb
LRC Bare Chassis Weight with Hoist
114067 lb
LRC Gross Vehicle Weight (Target) without Hoist
363000 lb
LRC Gross Vehicle Weight (Target) with Hoist
363000 lb
HRC Bare Chassis Weight without Hoist
112656 lb
HRC Bare Chassis Weight with Hoist
115218 lb
HRC Gross Vehicle Weight (Target) without Hoist
363000 lb
HRC Gross Vehicle Weight (Target) with Hoist
363000 lb
Note
LRC model is offered for lesser regulated countries. HRC model is offered for highly regulated countries. Available as Tier 4 Final/Stage V equivalent, Tier 3/Stage IIIA equivalent, or Tier 2/Stage II equivalent emission standards.
Specification
Value
Nominal Water Tank Capacity
20000 gal (US)
Specification
Value
Tractor ROPS
133082 lb
Specification
Value
Forward - 1
6.6 mile/h
Forward - 2
9.1 mile/h
Forward - 3
11.9 mile/h
Forward - 4
16.6 mile/h
Forward - 5
22.5 mile/h
Forward - 6
30.2 mile/h
Forward - 7
40.9 mile/h
Reverse
7.5 mile/h
Specification
Value
Brake Surface - Front
6331 in²
Brake Surface - Rear
15828 in²
Specification
Value
Fuel Tank Capacity
300 gal (US)
Cooling System
63.4 gal (US)
Crankcase
28.7 gal (US)
Steering System - Including Tank
14.1 gal (US)
Brake/Hoist Hydraulic Tank
117 gal (US)
Brake Hoist System
85 gal (US)
Torque Converter - Transmission System
36.5 gal (US)
Specification
Value
Steering Standards
ISO 5010:2007
Steer Angle
30.5 °
Turning Diameter
83 ft
Turning Circle - Clearance Diameter
93 ft
- Cat® Off-Highway Truck Bare Chassis ROPS is certified to ISO 3471 Tractor criteria, to provide a higher level of protection for towing applications.
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects.
- Using an off-highway truck bare chassis provides a solution that is ideal for dust suppression, road construction, fire protection, and other applications.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the water truck application, all through your local Cat dealer, to provide the best solution for your business.
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects.
- Using an off-highway truck bare chassis provides a solution that is ideal for delivering fuel and preventive maintenance lubrication to your site's machine fleet.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the service truck application, all through your local Cat dealer, to provide the best solution for your business.
- Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for tow applications.
- Using an off-highway truck bare chassis provides a solution that is ideal for equipment trailers and bottom dump trailers.
- Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the tow application, all through your local Cat dealer, to provide the best solution for your business.
