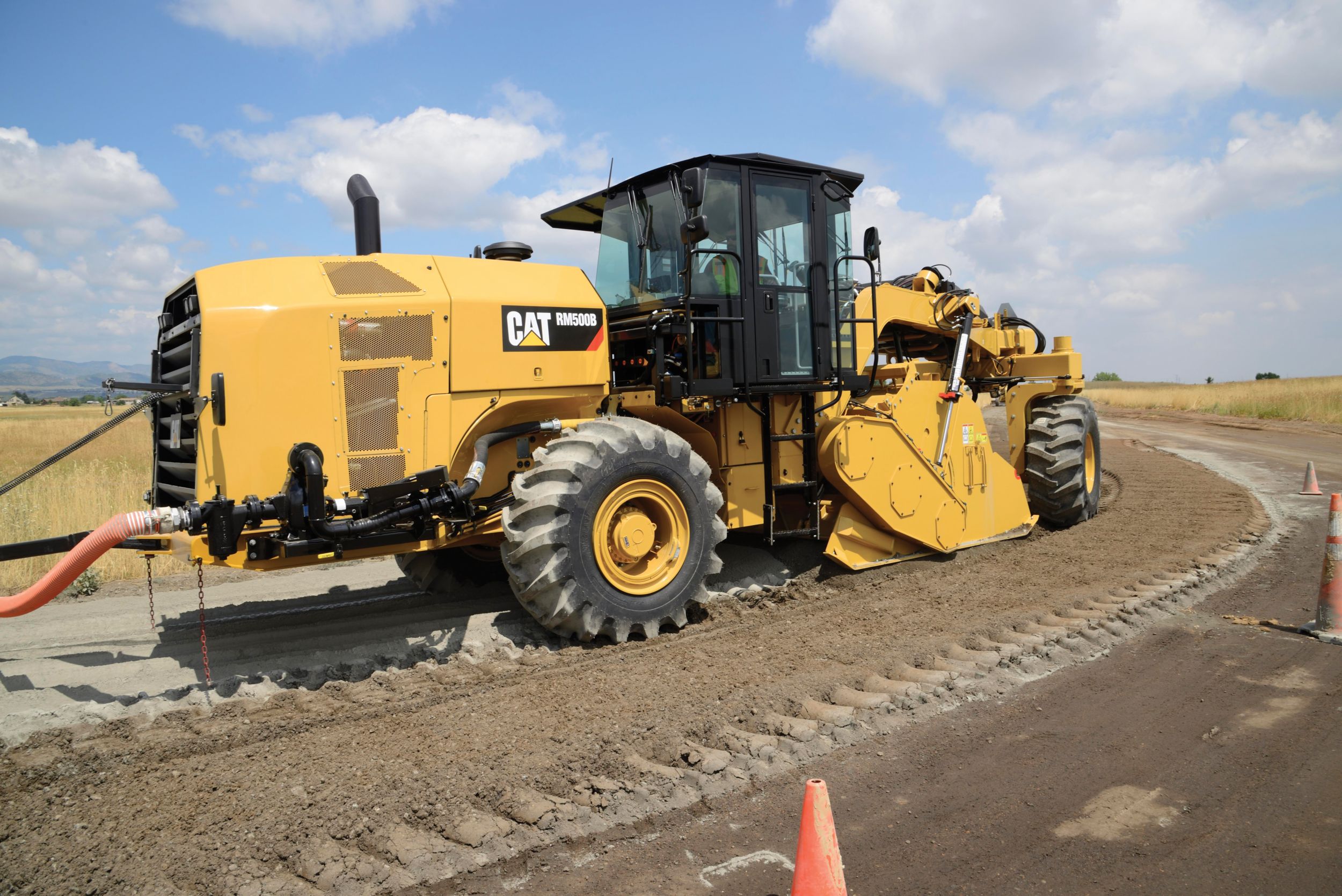

RM500B
The RM500B Rotary Mixer combines superior performance and reliability to achieve the most demanding job specifications while maximizing machine uptime. With many enhanced features and options, the RM500B is designed to work well in both full depth reclamation and soil stabilization applications.
Maximum Operating Weight
62611 lb
Cutting/Mixing Width
96.0 in
Operating Speed
2.0 mile/h
Specification
Value
Maximum Operating Weight
62611 lb
Specification
Value
Cutting/Mixing Width
96.0 in
Operating Speed
2.0 mile/h
Maximum Cutting/Mixing Depth
20.0 in
Rotor Speed - First (at 2100 Engine rpm)
110.0 r/min
Maximum Travel Speed
6.2 mile/h
Rotor Speed - Third (at 2100 Engine rpm)
205.0 r/min
Rotor Options
Universal, Combination, Soil
Rotor Speed - Second (at 2100 Engine rpm)
152.0 r/min
Specification
Value
Gross Power
540 HP
Engine Model
C15
Specification
Value
Ground Clearance
19.9 in
Wheel Base
21.33 ft
Length
33.83 ft
Maximum Height
11.78 ft
Width
9.58 ft
Specification
Value
Fuel Tank Capacity
279.0 gal (US)
